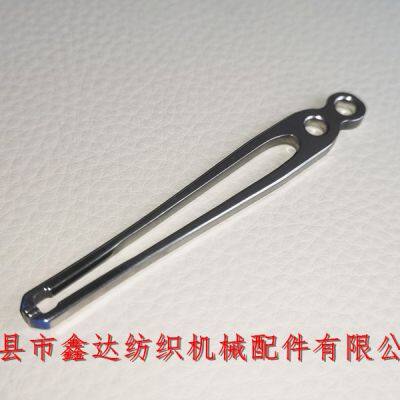

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides Sulzer Loom Parts D1 Projectile Gripper Knurl 911 312 212, Projectile gripper 25N/2500 GR D1 type 2.2*4 knurled yarn clamp with overall length of 77.6mm, overall width of 10.5mm, external width of front part of 6.1mm, overall thickness of 3mm, internal diameter of circular hole of 4.4mm, and internal diameter of front clamp.
The weight of a single Knurl Gripper is about 8 grams. If you need to purchase 911 312 212 knurled (knurled) gripper, gripper, knurled gripper, D1 gripper and other specifications, please contact Yang Jingli of our company for discussion.
The width of the nip position at the front of the Gripper D1 is 2.2mm, the length is 4mm, and the blue mark is the clamping force of 2500GR. We are the supplier of PU yarn clips, TW yarn clips, D1 yarn clips, Sulzer shuttle accessories and P7100 domestic textile machine accessories.
The packaging method is transparent bags, each bag contains 3 pieces; The netted (knurled) yarn clamp (911 312 212 shuttle clamp Projectile Loom Parts) has strong clamping force, and the product material technology is reasonable. The shuttle clamp of projectile loom is a vulnerable part, and the clamping force is selected according to the fabric material.
The inner cavity width of D1 gripper (911 312 212) varies from 2.4mm to 5.6mm, the inner length is 57mm, the outer width of the tail is 7.9mm, and the tail is a flush plane,Sulzer Loom Parts D1 Projectile Gripper Knurl 911312212.
>>
