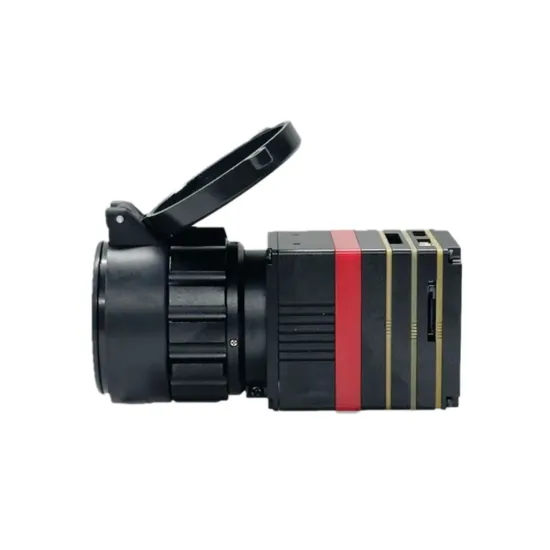

384X288 19mm Manual Onvif Protocol Support Thermal Imaging Sensor

Product Description

Features:. Using vanadium oxide uncooled infrared detector, it has high sensitivity and good image quality.. The highest resolution can reach 384*288, real-time image output. NETD sensitivity≤35 mK @F1.0, 300K. Supports network access and has rich image adjustment functions. Support RS232, 485 serial communication. Support 1 audio input and 1 audio output. Built-in 1 alarm input and 1 alarm output, supporting alarm linkage function. Supports Micro SD/SDHC/SDXC card storage up to 256G. Rich interfaces for easy function expansion

Model	CQ-LTML4C12-19MH
Detector type	VOx Uncooled thermal Detector
Effective Pixels	384x288
Pixel size	12μm
Response band	8~14μm
NETD	≤35mK(@F1.0, 300K)
Lens	19mm manully focus lens
Focus	Manual
FOV	13.8° x 10.3°
Focusing range	2M~∞
Interface Protocol	ONVIF (Profile S, Profile G), SDK
Resolution	25fps (384x288)
Network Interface	100M network port
Analog Output	CVBS
Communication serial port	RS232, RS485
Power supply	DC12V±10%
Operating temp. and humidity	-30ºC~60ºC, humidity less than 90%

---
