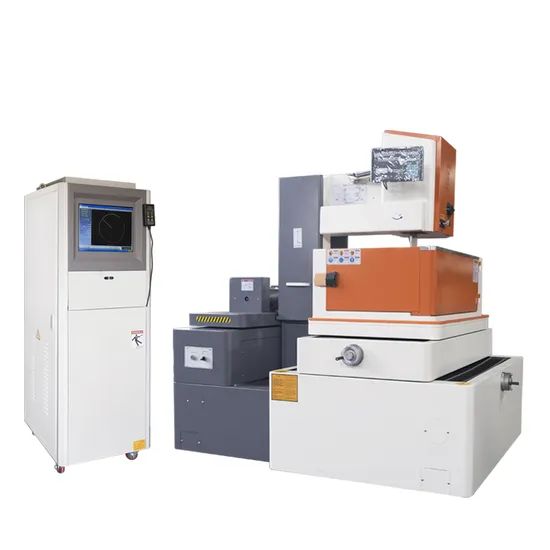

Moly Wire Autocut CNC Middle Speed Wire Cut EDM Machine Rt320 with Taiwan High Precision Linear Guide

Product Description

Specification
Product Informations Because brass wire cutting machine tools are expensive and difficult to learn, Taizhou Ruite Machinery Equipment Co.,Ltd. has continuously improved our RT series machines based on the strengths of hundreds of the companies,which is with simple operation,long service life and high cost performance. Molybdenum wire can be reused instead of disposable brass wire.Not only greatly reduces the cost of buying machines and processing for customers, but also provides customers with excellent cutting prcision and finish. The machine parts all come from high-end brands (HIWIN linear guide rail, Japan NSK bearings, grade P3 double nut ball screw, Japan Panasonic servo system, etc.) to ensure good machine performance, and at the same time,we still provide customers with reasonable price. The company also produces ±30°, ±45° swing large taper machines and CNC high-precision middle speed edm wire cutting machines(Precision≤±0.005mm,roughness≤1.0μm). The following are the main parameters of DK77 series machines:
1.Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm)
3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max. cutting speed≥120mm^2/min;
6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;
7.Working fluid:Water-based emulsion.

ITEM	RT320	RT400	RT500	RT630
Worktable size (mm)	760*520	850*600	1000*750	1160*820
X, Y axis travel	400*320	500*400	630*500	800*630
Machine weight (KG)	1850	2160	2730	3420
Z-axis lifting mode	Electrical
A-axis travel size (mm)	280
Electrode wire diameter (mm)	Φ0.12-Φ0.20mm
Wire feed rate	7 levels adjustable
Process accuracy(Vertical)	Multi-cut:10×10×30(square)≤0.005mm One-cut≤0.012(Multi-cut)(Octagon)≤0.008mm
Cutting speed (mm²/min)	0-180
Process roughness	Multi-cut:Ra≤1.2μm One-cut:Ra≤2.5μm
Maximum cutting thickness (mm)	240	240	300	300
Maximum cutting taper (°/mm)	±3°/80
Power (KVA)	2.5
Motor drive system	Stepping motor or AC servo motor*(Opition)
Maximum workpiece weight	180	260	400	600
Machine size	1560*1100*1680	1600*1200*1680	1830*1390*1780	2060*1650*2050

Products Description
Applicable Industries Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Company Profile
Exhibition
Certifications
CE Certificate
BV Certificate
ISO 9001
Chinese Itegrity Entrepreneur
Value Service And Credit Enterprise
Value Quality And Credit Enterprise
Packaging & Delivery
FAQ
Q1:What information do you need before making quotation? A:Worktable size or table travel you need.Surface roughness and cutting speed requirements. Q2:How to choose the machine I want? A:Firstly,please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a suitable model; Secondly,please check if precision and roughness meet your requirements;(Our TRS series machines have much higher precision and better finish) Q3:What should I do to start a new business in EDM wire cutting machine area? A:Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine. Q:Why choose you?What is the difference between you and other Chinese supplier? A:We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia, India, UAE,South Korea, Canada, Vietnam, Thailand, Mexico, Turkey and etc. You can get higher quality product & better professional service from Ruite with same price. Q3:I`m worried about after-sales service! A:Warranty is one year. Any parts damaged during warranty will be replaced for free! We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price. Our engineers are available to service overseas!

---
