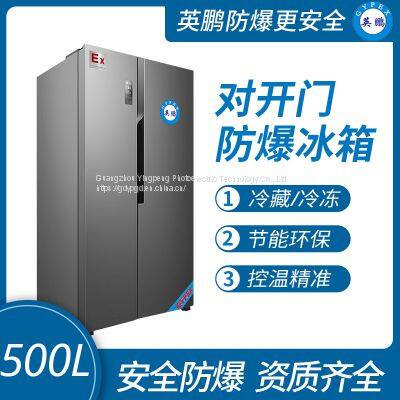

Product Details
Product Description
Product Description
Brand: Yingpeng
Model: BL-200SM500L
Total capacity: 500
Refrigeration room volume: 310L
Refrigeration room volume: 190L
Control method: computer
Button method: touch control
Category: opposite door opening
Refrigeration capacity (kg/12h): 8.0
Refrigeration temperature: 2 ℃~8 ℃
Freezing temperature: -15 ℃~-25 ℃
Compressor type: dual frequency conversion
Noise dB (A): 38
Rated voltage/frequency: 220V/50Hz
Power consumption (kW · h/24h): 0.97
Boundary dimension (mm): 910 * 646 * 1786
Explosion proof grade: ExdibmbIICT4Gb
Main parameters of the new explosion-proof refrigerator door opening model
brand
Yingpeng
Yingpeng
Yingpeng
model
BL-200SM450L
BL-200SM500L
BL-200SM600L
Total capacity
450L
500L
600L
Refrigeration room volume
260L
310L
390L
Refrigeration chamber volume
190L
190L
210L
Button mode
Touch
Touch
Touch
category
Opposite door
Opposite door
Opposite door
Refrigeration capacity (kg/12h)
six
eight
six
Reefer-Temperature required
1℃~9℃
2℃~8℃
2℃~8℃
Freezing temperature
-15℃~-23℃
-15℃~-25℃
-16℃~-24℃
Compressor type
frequency conversion
Dual frequency conversion
Dual frequency conversion
Noise dB (A)
thirty-eight
thirty-eight
thirty-eight
Rated voltage/frequency
220V/50HZ
220V/50HZ
220V/50HZ
Power consumption (kw · h/24h)
zero point nine eight
zero point nine seven
zero point nine five
Overall dimensions
647*830*1775mm
910*646*1786mm
911*706*1780mm
Explosion proof level
ExdibmbIICT4Gb
ExdibmbIICT4Gb
ExdibmbIICT4Gb
Product production standards:
The entire machine adopts ultra weak current technology to isolate intrinsically safe circuits, and has undergone process manufacturing and explosion-proof treatment,
The design and manufacturing of the product strictly follow the relevant standards:
GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"
GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "
GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "
GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "
GB 3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "
The product surface adopts * * * surface temperature limit protection technology and comprehensive anti-static technology, as well as various safety protection technologies; Voltage: 220V/50Hz, 220V/60Hz, 110V/50Hz.
after-sale service
One year warranty for the entire machine (excluding appearance), three years warranty for the compressor, joint warranty! Our company has 240 after-sales outlets, and our after-sales commitment is to respond within 24 hours and provide on-site service within 48 hours!
>>
