Congsin 1500W 24V 230V DC/AC Modified Sine Wave Power Inverters

Product Description

Product Description A power inverter, inverter or invertor is a power electronic device or circuitry that changes direct current (DC) to alternating current (AC). The resulting AC frequency obtained depends on the particular device employed. Inverters do the opposite of rectifiers which were originally large electromechanical devices converting AC to DC.
The input voltage, output voltage and frequency, and overall power handling depend on the design of the specific device or circuitry. The inverter does not produce any power; the power is provided by the DC source.
A power inverter can be entirely electronic or may be a combination of mechanical effects (such as a rotary apparatus) and electronic circuitry. Static inverters do not use moving parts in the conversion process.
Power inverters are primarily used in electrical power applications where high currents and voltages are present; circuits that perform the same function for electronic signals, which usually have very low currents and voltages, are called oscillators. Circuits that perform the opposite function, converting AC to DC, are called rectifiers.

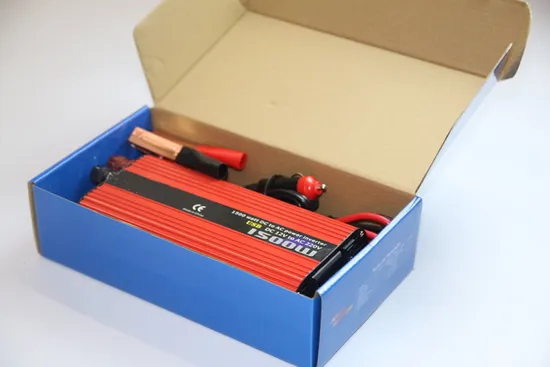

Detailed Photos
Product Parameters

Model	CSD1500H
Max Continuous Power	1500W
Peak Load Power Rate	3000W
Input Voltage	DC12V/24V
Output Voltage	AC110V/220V/230V/240V
Output Waveform	Modified Sine Wave
Output Frequency Range	50/60+/- 3Hz
No Load Current Draw	<0.3A
Max Outer Temperature	< 65°C
Max Power Efficiency	> 90%
High Voltage Cut Off Level	14.5V-15.5V
Low Voltage Alarm Level	DC 10.4-11.V/20-21V
Low Voltage Cut Off Level	DC 9.7V-10.3V/19.4-20V
Ambient Operating Temperature Range	0-40°C
Protection Function	Low-voltage, High voltage, Overload, Short-circuit Protection
Product Size	200*116*56mm
G.W.	1.2KG
