Product Details
Product Description
Product Description
product feature：

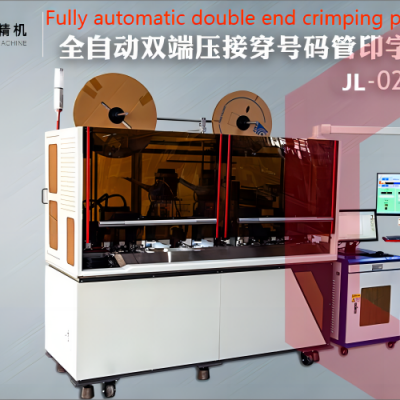

Equipment name Model：JL-02UP automatic double head tube printer
Main function：Double head press, through the sleeve, printing, positioning heat shrink
Control mode：Man-machine interface + computer industrial control
Printing mode：Optional ribbon printing, or laser printing
Pay-off system：Computer automatic wire feeder, suitable for coil loading + shaft loading
Detection device：Terminals are available, wire knotting, missing wire alarm, air pressure detection, number tube is available
Terminal detection system：Optional addition: pressure detection +CCD visual detection
Fitting mold：OTP standard horizontal mold, straight mold, flag mold
Terminal holding capacity：3T ultra-mute frequency conversion terminal
power：50/60HZ 220V single-phase
Working length：Cutting length: 300mm-9999mm：Heat shrink positioning: 0-30mm：Length of heat shrink tube: 10-30mm：Heat shrink tube OD: 2.5-6mm。
Wire processing range：AWG#12-AWG#28
The range of terminals can be processed：Conventional terminal
Production capacity：About 1400-1800 pieces/hour (wire length 300mm)
Stripping length：End A 0-15mm, end B 0-15mm
Cutting accuracy：± (0.2%*L+1) mm
Air pressure：0.5-0.7Mpa (5-7KG/m³)
External dimension：2100x800x2000(excluding the size of pay-off stand, refer to the final 3D for the actual size)
weight：About 1200KG±15KG
Fully automated non-standard equipment can be customized according to customer samples.
>>
