Product Details
Product Description
Product Description
Product Description
All products of our company can be customized, and have a perfect after-sales guarantee system.
Products can OEM according to your requirements.
Product Description
Applicable place
Widely applied in general lighting and operation lighting in hazardous environments of oil exploitation, oil refining, metal smelting, chemicals, military, coal mines, thermal power stations, wineries, etc.
Applicable for Zone 1, Zone 2, Class IIA, Class IIB and Class IIC explosive gas environments and flammable dust environments as well as Zone 21 and Zone 22 flammable and explosive sites.

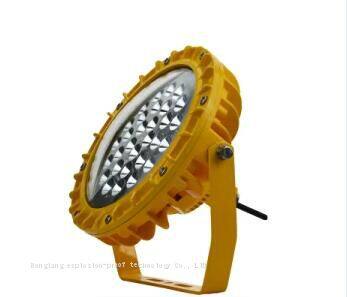

| product name | LED Explosion Proof Light |
| Explosion-proof mark | Exd IIC T6 Gb/Ex tD A21 Ip66 T80 ºC |
| Rated power | 60W/70W |
| Input Voltage | AC/DC 220V±20% |
| Frequency | 50Hz |
| Corrosion-proof Grade | WF2 |
| light source type | LED |
| insulation blanket grade | I |
| Power Factor | 0.98 |
| IP Grade | IP66 |
| Net Weight | 4KG |
| Inlet specification | G3/4 |
| Dimensions of Lamp | φ275*220mm |
| LED flux | 6600~7700Lm |
Product Features
Light source module:
High brightness LED light source, with high efficiency cross-flow drive power supply, save up to 60% than gas discharge lamp, LED components are all closed, waterproof and dustproof, highest internal cleaning and maintenance, circuit substrate thermal resistance is low, specially designed template circuit, each unit fault will not affect the normal work of the rest of the components.
Power module:
High efficiency cross-flow drive power supply with intelligent power, modulator, with light flux compensation function, reduce light decay, ensure the LED light efficiency, with overvoltage protection, overcurrent protection stage surge current protection function.
Cooling module:
Explosion-proof lamp shell using aluminum alloy high pressure raise cause model, surface after shot high voltage electrostatic spraying, effectively improve the performance of radiator shell, substrate aluminum alloy shell, point heat source can be instantly transformed into plane heat source, heat dissipation area multiplied, heat disperse quickly, improve the efficiency of heat dissipation, shell surface has the airflow grooves, with the aid of air flow take away heat, high density of heat dissipation scales and greatly increase the cooling area, fully guarantee the LED heat dissipation requirements, longer service life.
Light distribution module:
For each type of lamps and lanterns is special one-piece structure design, the power supply cavity has a hinge, more convenient installation of lamps and lanterns, this series lamps and lanterns is belong to product of free maintenance, energy conservation, environmental protection, wall installation rotation Angle is adjustable, cable wiring, type suction a top, embedded installation immediately by cable and steel pipe wiring, exposed fasteners high anticorrosion performance of stainless steel material.
LED explosion-proof lights are high-efficiency high-power LED light source with accurate light distribution design, together with 99.99% high-purity aluminum reflector cup and 93% transparent PC imported parts with light transmittance. The efficiency of lamps is up to 79%, which is more than 40% higher than the industry level.
Advanced and reasonable circuit design, with high-quality components, electrical efficiency up to 90%, higher than the industry level of more than 6%.
Efficient light source + efficient light distribution + efficient circuit, more than 50% energy saving than the industry level. Reduce maintenance effort
According to the national military standard quality control system, after strict reliability and aging test, the lamp failure rate is lower.
After-sales guarantee
Strictly in accordance with ISO9001:2008 quality assurance system for quality control, all the raw materials and accessories are superior.
The product is guaranteed for 5 years. If there is any quality problem in the first 3 years, we will replace the same kind of new products unconditionally, and the next 2 years will be repaired free of charge (except for man-made damage and natural disasters).
Our Company
Ronglang electric CO.,LTD is located in Yueqing city, the city of electrical appliances in China. It is a high-tech enterprises with research and development, manufacturing, trade, and service. The company mainly deals with explosion-proof electrical appliances, professional lighting and circuit breaker series for factories, with dozens of series and hundreds of varieties and specifications of professional products. The company is committed to providing professional system products and technical service solutions for metallurgy, railways, stadiums, military forces, public security, fire fighting, oil fields, petrochemical, electric power and other industries, and has been widely used in related industries.
The products manufactured and inspected in strict accordance with national standards such as GB3836-2000 electrical equipment for explosive gas environment. The company has set up offices or agencies in major cities across the country, the marketing network is sound, can provide users with efficient, detailed, comprehensive quality services. And also have been exported to Japan, Europe, South America, Middle East, and other more than 20 countries and regions. The product performance is superior and reliable, widely used in petroleum, petrochemical, chemical, aerospace, textile, pharmaceutical, military, fire, coal, grain, wine and other industrial science and technology pilot! Our company's philosophy for the majority of new and old customers to provide quality products and sincere service quality; We look forward to your joining us and starting a business together.
>>
