Sh121 Sh151 Sh181 Power Tiller

Product Description

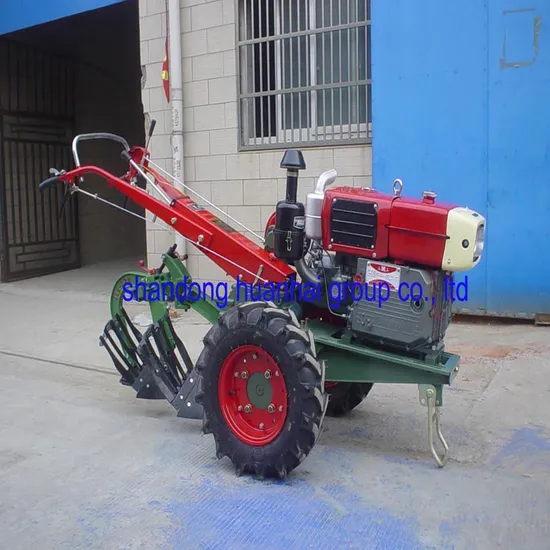

MODEL SH121-SH151-SH181 WALKING TRACTOR:
Our walking tractors has compact structure, with long lifespan, also it is easy to operate and has sufficient power output.
An adjustable seat is also provided to ease the work of the operator. This model of tractor is suitable for use in paddy fields, small plots of dry field, orchard, vegetable garden as well as in hilly areas with small inclination.
With different kinds of farm implements mounted, the tractor can be used for ploughing, rotary-cultivating, harrowing in paddy fields, harvesting, transportation and so on. It can also drive-stationary PTO-driven equipment such as for smallscale drainage and irrigation, sprinkling and spraying, threshing, cotton-ginning, flour-millling, fodder-cutting, and other farm work in the countryside.
Basic specification of chassis:
Dimensions (mm): 2680x960x1250
Minimum ground clearance (mm): 182
Wheel tread (mm): 800; 740; 640;
Driving wheel: 6.00-12 rubber tyre
Construction weight (kg): 350
Total weight including fuel and water (kg)
With plough: 420
With rotary cultivator: 485
Alternator: SFF45 permanent magnet, AC generator
Speed of cultivator shaft (rpm)
High 256
Low 188
V-belt Type B1880
Specification of S195N diesel engines:
Type: Single, horizontal, water cooling, 4-stroke
Cylinder bore x piston stroke (mm): 95x115
Displacement ( L): 0.815
Compression ratio: 20: 1
Rated output:
12-hour power: (kw/hp): 8.82/12
Rated speed(r. P. M): 2000
Cooling system: Condenser
Starting method: Hand crank / elctric start
Net weight (kg): 140 / 180
Specification of SH1100N diesel engines:
Type: Single, horizontal, water cooling, 4-stroke
Cylinder bore x piston stroke (mm): 100 x 115
Displacement (l): 0.903
Compression ratio: 17
Rated output:
12-hour power: 11.76 / 16 (kw/hp)
Rated speed(r. P. M): 2200
Cooling system: Condenser
Starting method: Hand crank / elctric start
Net weight (kg): 150 / 190
Chain box: Chain drive (double row, roller type chain, 1/2", 64 links)
Specification of clutch: 2-disc, constant-contact, friction type
Specification of gearbox: Gear type - (3+1)x2 high/low range
Specification of final drive: 2-step gear redution
Specification of brake: Internal expanding ring type
Specification of steering system: Jaw clutch
Speed (km/hr)
Forward 1.4, 2.5, 4.1, 5.3, 9.4, 15.3
Reverse 1.0, 3.8

---
