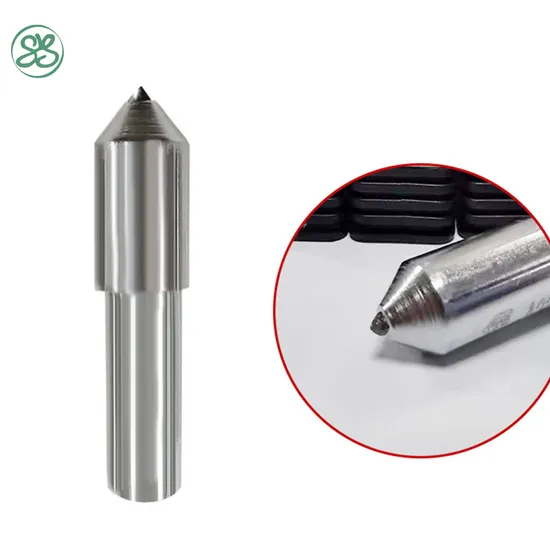

Diamond Dresser Single Point Grinding Wheel Tapered Point Tools

Product Description

Diamond DresserSingle point diamond dressers offer a straight cutting edge that removes worn abrasives and sharpens the grinding wheel. They are commonly used for simple profiles, threads, and gear grinding. They are constructed of small diamonds bonded and brazed to a steel shank.
Cooperation with SYSSmall serial production, Mass customization; Clients first reputation firstPerfect material resistance to corrosion and agingReduce production costs, manufacturing technique change, and innovation.Providing quality service is always our top prioritySpecification
Product name: Grinding wheel dresser; Abrasive dresser; Diamond dresser
Brand: SYS
Diamond Carat Size (Carat):1
Shank Diameter (mm):3/5/6/8/10(Option customized)
Shank Length (mm): 50 (Option customized)
Included Angle:45 (Option customized)
Resettable: NO
Point Type:1
OEM: Customized size support High-quality iron rod one-piece die-casting, tight and durable, ultra-damage resistant
Using low-temperature welding technology, diamond welding firmly, the particles do not fall off
It adopts new powder metallurgy technology, through high-temperature sintering and hot press molding process, natural diamond brick is embedded in carbide matrix, which has quite high hardness and bending strength.
Diamond washing dresser is used for dressing grinding wheels, improving grinding wheel grinding rate, improving the accuracy of the parts processed by grinding wheels, making the surface of the processed spare parts more polished, and widely assembled in various CNC grinding machines.
Diamond pen axially and grinding wheel radially into 15 ° angle, dressing
2. The general stroke of the tool feed when the dressing is 0.02-0.04MM, the speed should be uniform 3. Coolant should be added when dressing the grinding wheel, and it is strictly forbidden to rush cold after hot

---
