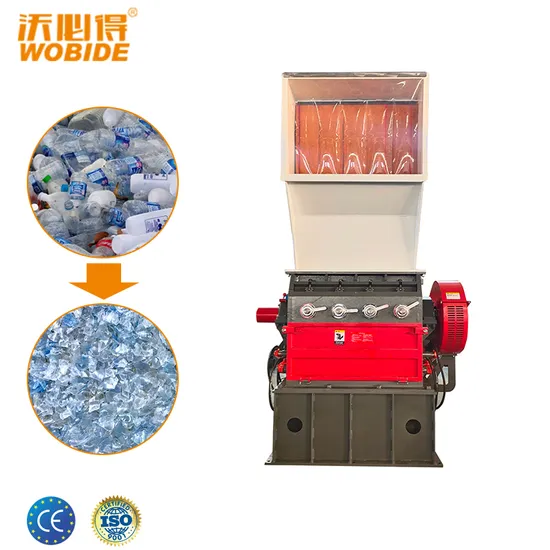

Basic Info.
Type
Hard Plastic Crusher
Structure
Tangential Feed
Knife Classification
Piece Knife Crusher
Knife Roll
Solid Knife Roller
Computerized
Computerized
Certification
CE, ISO9001
Main Shaft Length(mm)
1000
Main Shaft Tactical Diameter(mm)
600
Rotor Blades (PCS)
2X5/2X7
Screen Mesh Diameter (mm)
10-50
Overall Dimension (mm)
2300X1950X3350
Specification
2300X1950X3350
Production Capacity
100/Month
Packaging & Delivery
Package Size
230.00cm * 195.00cm * 335.00cm
Package Gross Weight
4000.000kg
Product Description
Product Description
Model
| WHC1000/600
|
Main Shaft Length(mm)
| 1000
|
Tactical Diameter(mm)
| 600
|
Speed(rpm)
| 520
|
Rotor Blades(pcs)
| 2x5/2x7
|
Fixed Blades(pcs)
| 4
|
Motor Power(kw)
| 55/75
|
Hydraulic Power(kw)
| 1.5
|
Screen Mesh Diameter(mm)
| 10-50
|
Inlet Size(mm)
| 800x1000
|
Overall Dimension (mm)
| 2300x1950x3350
|
Weight(kg)
| 4500
|
Detailed Photos
Application
Crusher Product Series
More Products
Company Profile
FAQ
1.What information shall I provide when I request for quotation?
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
>>
