Mini Excavator for Garden and Manufacturing Plant Compact Digge

Product Description

YD Excavator

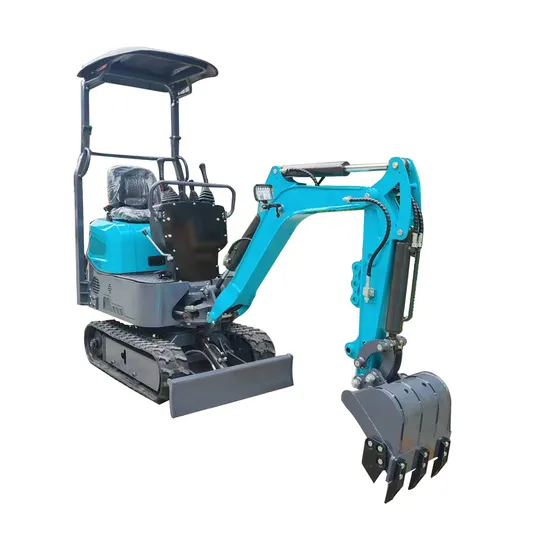

Product Overview The 1.2-ton mini excavator combines compact size with powerful performance, making it ideal for a wide range of tasks in construction, landscaping, agriculture, and utility projects. Its robust design and advanced features deliver exceptional efficiency and reliability, even in tight spaces.
Key Features Compact and Versatile: Small enough for confined areas but powerful enough for demanding tasks. High-Performance Engine: Reliable engine ensures consistent power output for various applications. Precision Operation: Advanced hydraulic system for smooth and accurate digging and lifting. Multi-Attachment Compatibility: Supports various tools, including buckets, augers, and hydraulic breakers. Fuel-Efficient Design: Optimized for low fuel consumption to reduce operating costs. Durable Build: Built to withstand rugged environments with minimal maintenance requirements.
Product Parameters

Performance parameters
	unit	parameter
operating weight	KG	1200
engine		Koop 192/Koop 192F/Briggs & Stratton
Rated Power	KW	8.6
Work Pressure	Mpa	16
Running speed	KM/h	2.2
Swing speed	r/min	13
Bucket Capacity	m³	0.025
Fuel tank capacity	L	10.2
Gradeability	°	30
Ground pressure	kpa	20
Digging force of bucket arm	KN	4.6
Bucket digging force	KN	7.2
Outline Dimensions
	unit	parameter
Total length	mm	2876
Total width	mm	850
Total height (seat)	mm	1535
Total height (Roof)	mm	2200
Counterweight ground clearance	mm	385
Minimum ground clearance	mm	132
Tail turning radius	mm	800
Track ground length	mm	900
Track length	mm	1233
gauge	mm	670
Track width	mm	840
Track shoe width	mm	180
	mm
Scope of Work
	unit	parameter
Maximum digging height	mm	2550
Maximum unloading height	mm	1687
Maximum vertical arm digging depth	mm	1626
Maximum digging distance	mm	3077
Maximum digging distance at ground level	mm	2992

Product Description

The attachmens of our excavator:
Company Profile

Certifications

FAQ
Q: How long is the machine warranty time?
A: One year.
Q: Are you original manufacturer?
A: Yes. We are manufacturer of construction machines.
Q: What is the terms of payment?
A: :Normally, we accept 30% advance, 70% should be paid after finished the machine.
Q: What is the delivery time ?
A: Generally we need 7-15 days to produce the machine after prepayment ,if you are urgent , 5 days will be ok ,then send to port.
Q: How should we do if the machine broken ?
A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q: How should we do if parts are broken ?
A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.
Q: Can the machine use the trademark of our own company?
A: Yes ,sir ,of course.

---
