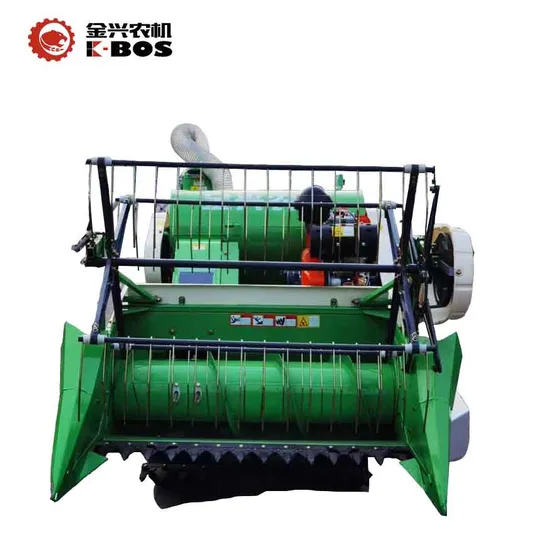

This mini model combine is specially for small-scale field in hilly and mountain area or island area;
It has small body but with fully-functioning as combine harvester, it can finish cutting, threshing, cleanning, unloading same time;
It is an manpower saved and efficiency improved small harvester.
Multi-functional: Rice, Wheat, Soybean, Rapeseeds, and other granular crops.
Adaptability: Light weight, compact structure, flexible operation, convenient for carrying. Product Parameters
| ITEM | PARAMETER |
| Feeding Capacity( kg/s ) | 0.9 |
| Overall Dimension Length×Width×Heights ( mm ): | 3100×1500×1650 |
| Weight (kg) | 495 |
| Productivity of Operating Hours(hm²/h): | 0.06 min |
| | |
| Engine | Engine Model | 192,110 |
| Rated Power ( kw/hp ) | 7.5KW/10HP,9.8KW/13.3HP |
| Engine Type | Air-Cooled, One-Cylinder, DI-Injection, Four-Stroke,Vertical Diesel. |
| Rated Rotation Speed (r/min) | 3600 |
| | | |
| Driving System | Clucth Connecting | Belt-Tension Pulley Type |
| Gear Shifts (forward/backward) | 4 (Slow, Fast, Empty, Backward) |
| | | |
| Traveling System | Rubber Track(mm): | 66x37x250 |
| Gauge | 645 |
| Theoretical Operating Speed ( m/s ) | 0.4~0.9 |
| Minimum Ground Clearance (mm) | 180 |
| | | |
| Cutting header | Height Adjustment | Hydaulics. |
| Cutting Width ( mm ) | 1100 |
| Type of Blade | VI Type / Left and Right. |
| Type of Header Auger | Telescopic Screw Conveying. |
| Pickup Reel | Eccentric Tooth(off-centre),Diameter 730mm,Qty 4 pcs |
| | | |
| Threshing System | Threshing System | Spiked Tooth Axial Flow |
| Threshing Cylinder Quantity | 1 |
| Cylinder Diameter×Length ( mm ) | φ360 x 980 |
| Concave sieve | Grid type |
| Cleaning Mechanism Type | Air and Screen Cleaning |
| Fan: | Centrifugal |
| | | |
| Grain Storing | Manual Operation | By Manpower |
