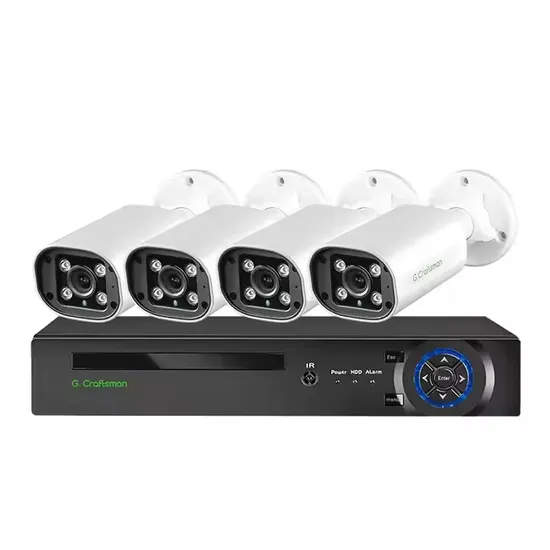

Gx-Pbfi-M4g-K4 Gcraftsman 4 Channel Poe NVR Kit 4MP Outdoor CCTV IP Home Surveillance Security Camera System

Product Description

Model No.: GX-PBFI-M4G-K4
Features:
4CH 4MP POE Camera NVR Kits
4MP plastic bullet POE camera
IR: 4pcs IR led as default,4pcs warm light is optional.(MOQ is 13 kits) IR:30M
Lens: 3.6mm
8MP 4CH POE NVR with 1 of SATA
AI Smart AnalyticsG.Craftsman AI Camera can intelligently filter objects to focus on human and face detection, which greatly enhances the monitoring efficiency and benefits the large population related industries such as public security, access control and business management.
Smart Alerts & Message Push Powered by smart motion detection technology, Gcraftsman camera can detect moving people and vehicles. Get email alerts and phone APP push when suspicious person or car is loitering around your house or store. Protect your property from potential threat.
P2P Remote Viewing, Anytime Anywhere Remotely view the WIFI camera/ NVR via phone APP on your mobile device, free G.craftsman PC software on your computer, web browsers (IE, Google Chrome, Microsoft Edge, Safari, Firefox, etc.).
Bright Night Vision The advanced IR Spotlight technology make GCraftsman has a sharp and long night vision distance up to 100 feet, letting you see any event clearly and accurately identify people present even in the dark. Face Capture &Search & Playback G.Craftsman Camera detects and captures human faces, the NVR supports the intelligent search and playback by AI analysis results such as face capture which greatly enhances the monitoring efficiency.
Smart H.265 Compression Smart H.265, The advanced video codec,save 70%~80% bandwidth compared with H.264. Especially Gcraftsman smart NVR working with smart camera is able to display the best image quality in a lower bit rate.
Multi-Languages Menu Multiple Languages Available: Russian, English, Italian, Portuguses, Spanish, French, German etc, it is easy for global users.Besides, we can also custmoize language at customer's requirement.
Free Firmware Update Free GCraftsman firmware update helps your camera/NVR keep up with the up-to-date features as well as fixing any bugs or glitches.
IP66 Waterproof Supporting IP66-rated weather-proof, which are the leading level of the industry, the G.Craftsman Network Camera is well protected against rainy and foggy weather to ensure the performance. Thermal Design The built-in radiation fin of PCB dissipates the heat effectively. Meanwhile, the ventilation holes on the side and bottom panels of NVR maximize airflow and carry heat away, ensuring the heat to transfer under a variety of different load conditions.
Packing & Delivery Quality Camera, NVR and all of the accessories are well-packed with protective mat in the box. G.Craftsman uses hard & thick cartons with cornor pads to protect the cameras, especially the vibration test before shipment can ensure the goods arrive there in good condition.
Product Parameters

POE Cameras
lmage Sensor	4 Mega Pixel,HD CMOS Sensor
Min. lllumination	Color: 0.01Lux@F1.6; B/W: 0Lux with LED on
Main Stream	20FPS (2560×1440),25FPS(2304×1296,1920×1080,1280×720)
Sub Stream	22FPS(D1),25FPS (HD1,CIF, QVGA)
Lens	3.6mm Standard; 2.8mm/6mm Optional
LED Type	Infrared
LED Distance	Up to 30m
Built-in Mic	Yes
Built-in Speaker	N/A
Built-in TF Card Slot	N/a
Protection Level	Plastic, IP66
Power	POE 48~52V; (DC12V Spare)
Intelligent Analysis	Humanoid Detection, Face Recognition based on XMEYE NVR
POE NVR
Type	10CH NVR with 4 POE Ports
Compression Method	H.265 AI / H.265/H.264
Operating System	Embedded LINUX
HDD	1SATA, MAX 14TB Each
Network Protocol	RTSP,ACP,ONVIF,P2P,UPnP,NTP,DHCP,PPPoE
Incoming bandwidth	72Mbps
Video Preview	10CH*8MP@30fps and below
Playback	1 x 4K@30, 2 x 4MP@25, 4 x 2MP@25,8 x 720P@25,9 x D1@25
Video Input	10ch Max 8MP Cameras
Video Output	1x HDMI(3840x2160),1x VGA(1920x1080)
Audio IN/OUT	10(IPC IN):1(RCA)
Alarm IN/OUT	N/A
Others	USB 2.0x2, HDMI, VGA, Audio I/O
Power	DC52V 1.8A
Intelligent Function	Working with Same Series IPC: Human Detection Recording,Human Detection, Face Detection,Vehicle Detection; Smart Motion Detection
Trigger Events	Recording, Email, Screen Tips, Buzzer, App push
Accessories
Network Cable	RJ45 Cable, Length 20 Meters
HDMI Cable	4K HDMI Cable, Length 2 Meters
HDD	Optional
Others	PSU, Mouse, User Manual, Screws and So on
