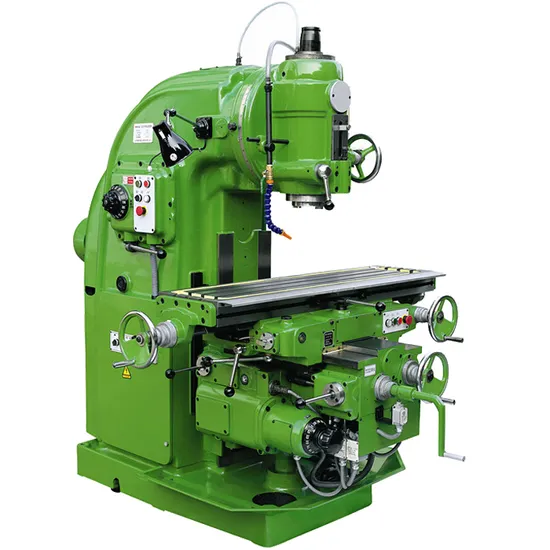

X5040 Metal Swivel Head Knee Type Universal Milling Machine

US$17,400.00
1-2 set
US$17,100.00
3+ set

Basic Info.

Model NO.
X5040
Type
Knee-and-Column Milling Machine
Object
Tool
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Name
Heavy Duty Unviersal Milling Machine
Table Size
1700X400mm
Table Travel
900X315X385mm
X Axis Rapid Feed
2300mm/Min
Y Axis Rapid Feed
1540mm/Min
Z Axis Rapid Feed
770mm/Min
Spindle Taper
ISO50
Mill Head Swivel
45degree
Distance Spindle to Table
115mm
Spindle Quill Stroke
85mm
Spindle Speed
30-1500rpm
Spindle Motor
11
T Slot
3X18mm
Table Load
800kg
Transport Package
Ply Wooden Case
Origin
China
HS Code
84595900
Production Capacity
80sets/Month

Product Description

swivel head knee type universal milling machine X5040


heavy duty vertical univesal milling machine feature:
1 Swallow tail guide ways with high accuracy.
2. Hardened and ground table surface, guideways with longer life.
3. Automatic feeds on x,y axes, motorized lifting and lowering of table on z axis
4. Head spindle swivel angle +/-45 degrees;
5. with enforce lubricating on X,Y,Z-axis and guide way with less ware out for the machine
5.Knee part with 3 supporter for Heavy load on the worktable.
6. Table Longitudinal and cross auto-feed with interlock system to avoide the error operation.
7. Spindle with ISO50, main motor with 11kw power ensuing the heavy-duty cutting stability.
knee type vertical univesal milling machine specifications:
Specification Unit X5040
Table size mm 400X1700
T-slots(NO./Width/Pitch) 3/18/90
Longitudinal travel(manual/auto) mm 900/880
Cross travel(manual/auto) mm 315/300
Vertical travel(manual/auto) mm 385/365
Rapid feed speed(X/Y/Z) mm/min 2300/1540/770
Max. load kg 800
Table feed range(X/Y/Z) mm/min 23.5-1180/15-786/8-394
Spindle speed range r/min 30-1500
Spindle speed step steps 18steps
Stroke of spindle quill mm 85
Max.swivel angle of vertical milling head ±45°
Distance between spindle nose and table surface mm 115/500
Power of spindle motor kw 11
Overall dimensions(L×W×H) mm 2556×2159×2258
Net weight kg 4250/4350

heavy duty vertical univesal milling machine standard accessories:
name Specification Model Qty
Drawbar 1set
ISO50 Cutter arbor Cutter arbor φ40 1 piece
7:24 The middle set of 7:24 ISO50/MS4 1piece
Oil gun 1 piece
Inner hexagon spanner 6 1 piece
Double-ended wrench 17x19 1 piece
Double-ended wrench 22x24 1 piece
Double-ended wrench 27x30 1 piece
Double-ended wrench 32x36 1 piece
Single head spanner 14 1 piece
Single head spanner 50 1 piece
Inner hexagonal wrench 5 1 piece
Inner hexagonal wrench 8 1 piece
Inner hexagonal wrench 10 1 piece

heavy duty vertical univesal milling machine optional accessories:
Name Specification Model Remark
Universal dividing head 125A Include three-jaw chuck
Universal dividing head 160 Include three-jaw chuck
Swivel table φ320 Manual
Indexable carbide mill tool φ63 With shank
Indexable carbide mill tool φ100 No shank
Indexable carbide mill tool φ160 No shank
Sizing block 240x120 6 pieces/set
Clamping kit
Milling chucks 15pcs

heavy duty vertical univesal milling machine more photos:
