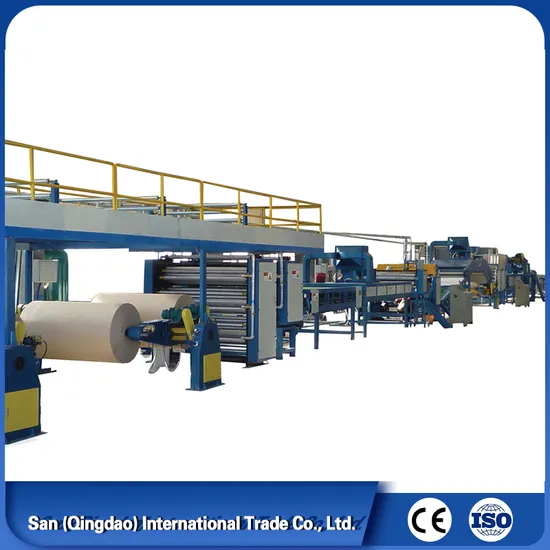

Chinese Suppliers Automatic Constant Speed Honeycomb Core Machine

Product Description

Product parameters

Model	SCHS-1600
Type	Continuous type
Adhesive	White latex, starch glue
Grammage of core paper	90-140gsm
Paper roll quantity	6 or 8
Cutting speed	400 cuts/min
Applicable cell size	4-30mm
Production output (for 30mm thickness and 140gsm)	910kg/hour
Heating type	Steam heating, hot air circulation
Power	About 60kw
Length	33m

Product Features:
1. Fully automatic, and the whole production line needs only 2-3 operators.
2. Two sets of gluing device to make two different kinds of holes for the honeycomb cardboard.
3. Human-machine interface, PLC control, and high auto to increase the efficiency.
4. Fine technic and easy operation
Product process
Finished product display
Company Profile
San (Qingdao) Machinery Co., Ltd was established in March 2005, based on the tenets of providing professional services wholeheartedly, supplying trustworthy and high efficiency products, helping employees build strong selves and live a prosperous life, and contributing to the development and progress of human society. In conformity with the management philosophy of being responsible, leading and realistic, "San" people are summing up experience and innovating constantly in technology, production, sales and service, and sparing no effort to be a leading integrated service provider for paper machines and paper converting machines in China.
Exhibition
Certifications
Packing & Delivery
FAQ:
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.
Q. Do you test all your machines before delivery?
A: Yes, we have 100% test before delivery.
Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
