Top Selling Vibratory Deburring Machine

Product Description

Top Selling Vibratory Deburring Machine

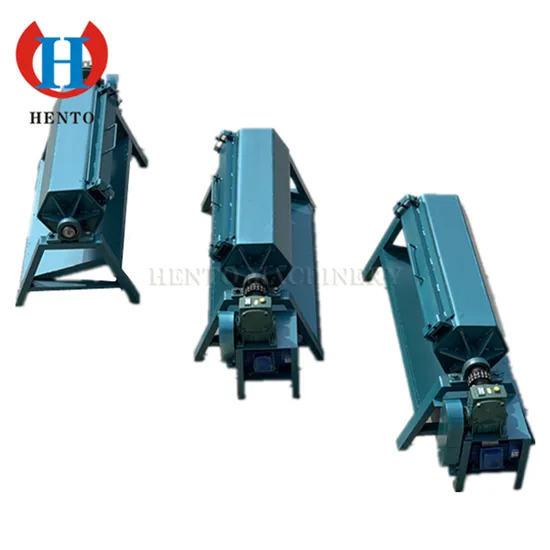

1.Production Description: Polishing machine drum type also known as hexagonal polishing and rust removal machine, hexagonal drum polishing machine, electric polishing machine, drum grinding and rust removal machine, Stainless steel deburring machine, hardware surface treatment polishing machine, oil removal rust machine, etc.This machine is an efficient grinding equipment,It is mainly used for deburring, rusting, rounding and polishing of metal and non-metal parts.
The machine avoided Traditionalpeeling, pickling, washing, ash coating, drying and other processes shorten the production cycle and significantly improve the production efficiency.
Characteristics of the equipment: 1.Adopt the principle of centrifugal movement to remove rust, polish and deburr for a short period.
Use the 40.17 gear reducer. The working speed of the roller is between 28 and 35r/min, and the
operation can be finished in half an hour.Improve work efficiency 6~10 times, save time and labor.
2. Abrasive materials are mainly river sand and steel sand, easy to obtain and low cost.
3. Maximum advantages: no pickling, dry derusting oil, polishing, automatic screening, one-time screening, no impurities except small metals in the drum.
4. It is especially suitable for surface finishing of workpieces that are easy to be deformed.
The parts processed by the grinding machine can not only maintain the original shape and
position accuracy, but also improve the surface roughness level 1-2.
5. Polish bulk parts, medium or large size parts for better effect.
6. It has the advantages of low noise and convenient operation.
7, the barrel covered with rubber lining, acid and alkali resistance, wear resistance, and can prevent
the workpiece collision, suitable for copper, iron, thin wall pieces, stainless steel pieces.
8, no coating lining inside the barrel, suitable for steel balls, steel products and other
non-deformation materials, because it can strengthen the cutting force, to promote greater effect.
9, for the grinding machine series, the most simple, convenient model, suitable for processing. 10.According to its capacity, it can be divided into 100~1000L and other specifications,
which can be customized according to requirements.
11. The volume of the mixture in the barrel shall not exceed 2/3 of the volume of the roller, leaving enough space for turnover and friction for the work.
12. As for the weight of each batch of bearing materials, it can be flexibly controlled, and roughly 1~1.5kg of materials can be polished per liter of volume.
2.Technical Parameter:

Model	HT-200
Reducer	175
Motor	3Kw
Cylinder size	50*100cm
Overall dimensions	2000*700*900mm
Weight	220Kg

3.Product Picture:
4.Packaging & Shipping:
5.Company Certificate:
6.Contact Information:

---
