Factory Direct Hydraulic Hot Press Machine for Woodworking Made in China

Product Description

Product Parameters

1	Model	BY61-48-1200T
2	Function	press melamine paper onto MDF, particle board
3	Production capacity	1200 sheets in 10 hours
4	Board loading direction	from 2600mm side of the machine
5	Hot platen size	1400*2600*120mm
6	Quantity of hot platens	2 sheets
7	Quantity of floors	single floor
8	Distance between hot platens	300mm
9	Hydraulic cylinders	6 units diameter 320mm, 2 units diameter 110mm
10	Pressure capacity	1200 tons
11	Stroke of hydraulic cylinders	300mm
12	Hydraulic cylinders place	Top
13	Hydraulic system	pump 10ml/rev, prefill valve,hydraulic manifold block
14	Hydraulic system limit pressure	25 M pa
15	Control method	Manual and Automatic control
16	Hot platen closing time	about 5 Seconds
17	Motor Power	5.5KW
18	In feed method	frequency control loading car
19	Out feed method	roller bracket
20	Frame style	Combination frame, two groups of frames

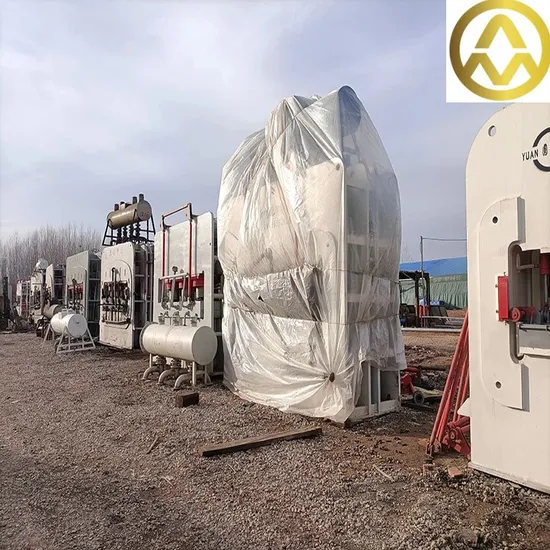

Detailed Photos

Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.The detail business range is as following:1-wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.2-plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.3- Particle board machine and MDF board machine.4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.


FAQ
Frequently Asked Questions
1.Can the product be customized?
Yes, we support product customization. Customize different products according to your needs.
2.Does the product have after-sales service?
Yes, we offer both online and offline service with a one-year warranty and lifetime after-sales.
3.Why choose us?
Excellent quality and service, as well as cost-effective products.
4.How to ensure the quality of the product?
Welcome to our factory to see the production process.
5.Who is responsible for the installation and commissioning of the machine?
We have more than 15 technicians on site to guide, install and commission the equipment.

---
