Farm Machinery Tractor Furrow Ridging Cultivator

Product Description

PRODUCT DESCRIPTION

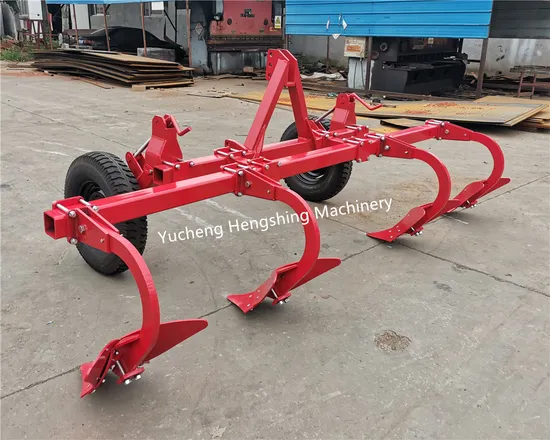

This 3QL series agricultural equipment ridging plough furrow ridger tractor ridger is suitable for ridging after the tillage in the farm field. It consists of heavy duty tubular box frame. This ridger is suitable for ridging after the tillage in the field for potato, beans, vegetable etc. It is convenient to adjust the ridging height and the ridging rows and space between each ridge. It can be easily spaced (widened or narrowed) as per the crop requirement. The rubber tire can be moved easily.This machine is reasonable for construction,conveniently to transport, easy to adjust, and conveniently to use and maintain.
Advantages:
1) The disc blades are made after the heat treatment in the material of 65Mn spring steel.
2) The discs can be notched and plain to your choice.
3) There two series of this disc ridger. Two discs and four discs respectively that make 1 or 2 ridging rows.
You can choose the nos of disc to meet the ridging rows need.
PRODUCT SPECIFICATION

Model	Unit	3QL-3T	3QL-4T	3QL-5T
Working width	Mm	2500	3200	3900
Ridging spacing	Mm	700~900	700~900	700~900
Ridging height	Mm	150~300	150~300	150~300
Machine weight	kg	390	470	560
Tractor power required	Hp	50-90	90-120	120-160
Linkage type		Tractor 3 point hitch

PRODUCT SHOW

---
