Anti Rodent Flat FRP Armored 144core Span300 Fiber Optic Cable ADSS

Product Description

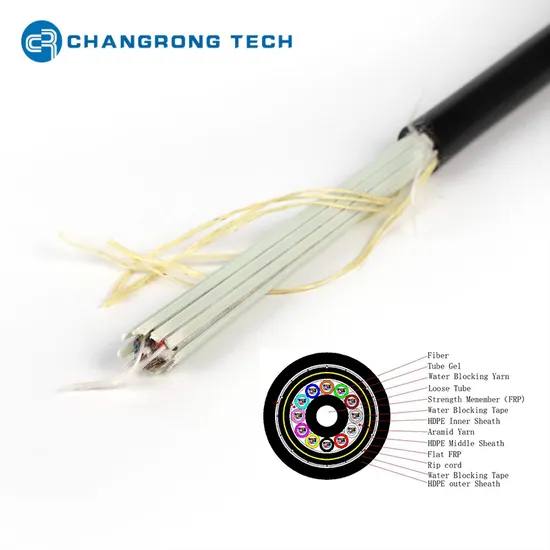

ADSS Anti Rodent Flat FRP & Aramid Yarn armored Fiber Optic Cable
Fiber counts: up to 144 coreFiber type: Single mode fiber G652.DCentral Strength Member: FRP
Aditional Strength Member1: Kevlar Aramid Yarn
Aditional Strength Member2: Flat FRPOuter Jacket: HDPEApplication: Self-supporting overhead laying
Moisture Resistance: Water-blocking Yarn & Water-blocking TapeSpan customized: 80/100/120/150/200/300m etc.
Product Parameters

Item	Value
Span	300 M
Fiber Count	12	24	48	144
PBT Tube	1	2	4	12
Fiber Count/ Tube	12	12	12	12
Filler	6	5	3	0
OD of Tube/mm	2.0±0.1	2.0±0.1	2.0±0.1	1.9±0.1
Thickness of Tube/mm	0.30±0.05	0.30±0.05	0.30±0.05	0.30±0.05
Central Strength FRP	2.8	2.8	2.8	2.8
Coated FRP	-	-	-	5.6
Water Blocking Material	Water Blocking Yarn+Water Blocking Tape
Rip cord	Polyester yarn*2
Water Blocking Material	Water Blocking Yarn+Water Blocking Tape
Inner Sheath	Nominal Thickness 1.0mm HDPE
Peripheral Strength Member	Aramid Yarn
Rip cord	Polyester yarn*2
Middle Sheath	Nominal Thickness 1.0mm HDPE
Armor	Flat FRP 3.0*1.0mm			Flat FRP 3.0*1.0mm
Water Blocking Material	Water Blocking Yarn+Water Blocking Tape
Rip cord	Polyester yarn*2-Red
Outer Sheath	Nominal Thickness 2.0mm HDPE	Nominal Thickness 2.0mm HDPE	Nominal Thickness 2.0mm HDPE	Nominal Thickness 2.0mm HDPE
OD of Cable/mm	17.8±0.3	17.8±0.3	17.8±0.3	20.5±0.3
Weight	294kg/km	294kg/km	297kg/km	392kg/km

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member to form the cable core. Water Blocking yarn and water blocking tape used in the cable core to prevent water penetration. Then Aramid Yarn & Flat FRP armored to reinforce . Finally, PE or AT outer jacket is extruded.
• It can be installed without power off.
• Easy to install with light weight and small diameter
• Large span length (up to 1000 meters) suitable for different requirements
• Good mechanical and environmental performance
• Flat FRP armored for better anti rodent functionCertifications
ISO 9001, ISO14001, ISO45001 Certified Factory
Own laboratory has passed the CNAS Certification
Our Advantages
50 Sets of Optical Cable Testing Equipment:
Packaging & Shipping
Drum Packing:
Shipping:
Company Profile
Anhui Changrong Optical Fiber & Cable Technology Co., Ltd, with total area of 230,000 Sqm, is one of the professional manufacturers of optical fibers and cables. ISO9001, ISO14001, ISO45001 certified.
Equipped with 9 cutting-edge fiber drawing towers and 18 production lines (for both fiber & cable), an annual production capacity of 15 million Fiber Kilometers, own lab certified by CNAS with advanced equipment imported from France, Japan and United States, CROFC is devoted to achieving the best solutions for customers.
Catalogue
Optical Fiber: G652D, G657A1, G657A2
Air Blown Micro duct Cable: GYCFTY
All Dielectric Cable: ADSS, ASU, GYFTY
Duct Installation Cable: GYTA, GYFTA, GYTS, GYFTS
Aerial Installation Cable: GYTC8Y, GYTC8S, GYTC8A, GYFTC8Y, GYFTC8S
Direct Burial Installation Cable: GYTY53, GYTA53, GYFTY53, GYTS53
Central Uni-tube Cable: GYXTW, GYFXTY, GYFXTS, GYXTC8S
FTTH Drop Cable: GJXH, GJXFH, GJYXCH, GJYXFCH
Welcom to contact for more information!
