China High Precision Hot Selling Manual Machine Q1325 Pipepipe Threading Lathe Machine

Product Description

Product Description

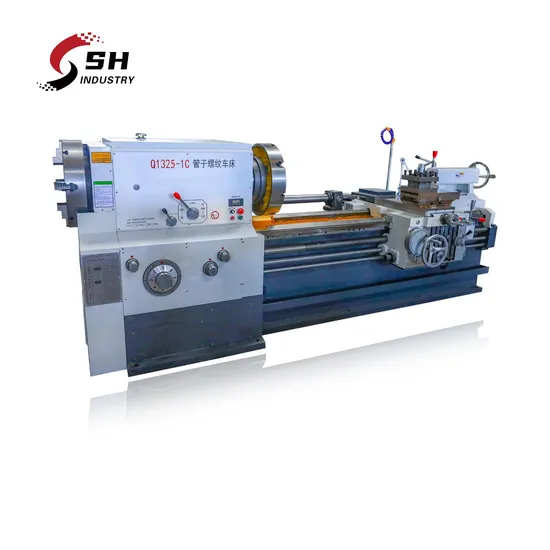

China High Precision Hot Selling Manual Machine Q1325 Pipe Threading Lathe Machine
Product Parameters

Main technical specifications	SPECIFICATIONS	Units	Q1325
	Swing over bed	mm	800
	Swing over cross slide	mm	480
	Distance between centers	mm	1500/3000
	Pipe threading range	mm	120-250
	Guideway width	mm	600
	Max. load capacity	kg	4000
	Spindle bore	mm	255
	Spindle speed steps	-	VF. 4 steps
	Spindle speed range	rpm	20-420
	Chuck	mm	φ630 4-jaw manual
	Turret/tool post	-	/Manual 4 position
	Tool shank size	mm	32 x 32
	X axis travel	mm	420
	Z axis travel	mm	1350/2850
	X axis feed steps/range	mm/r	22/0.02-0.45
	Z axis feed steps/range	mm/r	26/0.07-1.33
	X axis rapid traverse	mm/min	2300
	Z axis rapid traverse	mm/min	4000
	Metric thread kinds /range	mm	1/15
	Inch thread kinds /range	T.P.I	1/14
	Tailstock quill diameter	mm	120
	Tailstock quill taper	-	MT6
	Tailstock quill travel	mm	250
	Main spindle motor	kw	15
	Rapid traverse motor	kw	1.1
	Coolant pump motor	kw	0.125
	Weight for 1500	kg	8000
	Weight for 3000	kg	9000
	Dimension for 1500	mm	4100x1700x1600
	Dimension for 3000	mm	5600x1700x1600

Application:
Q13 series pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.
This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
The main performance characteristics:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Equiped with taper guide bar device this enables the machine to process taper threads.
Standard accessories:
Tool post,Tailstock,Chuck,taper guide bar,Lighting lamp,Coolant pump,Rear support bracket,Pad iron etc.
Optional accessories:
Digital readout,Chuck,Faceplate,Chasing dial,Center rest,Signal light,Protective cover(lead-screw,chuck,tool post),and Grinding attachment etc.
Realistic photos
Detailed Photos

Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
