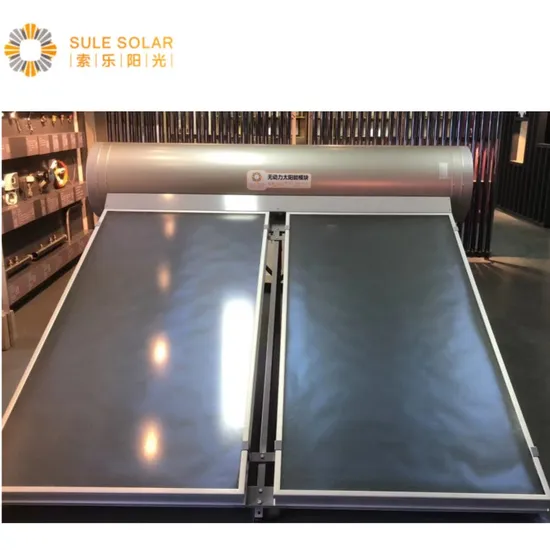

Portable Installation Solar Collector Flat Plate Solar Water Heater with High Pressure Galvanized Steel Water Tank and SS316L Coil heat exchange Product Details
| Product name | 215L Flat plate solar water heater |
| Model 1 (Non-freeze 0ºC ) | PFSLP-215/4.0/0 |
| Model 2 (Antifreeze -20ºC ) | PFSLP-215/4.0/-20 |
| Types of solar water heaters | Pressurized |
| Collector | Non freeze and antifreeze Flat plate collector |
| Absorber surface | Whole board blue film |
| Core runner | copper pipe |
| Collector Specifications | 1000*2000*80mm |
| Number of collectors | 2 pieces |
| Frame material | 6063-T5 aluminum alloy |
| Inner tank material | 0.5 mm SUS304 stainless steel |
| Inner tank diameter | Φ360mm ("D" type) |
| Outer tank material | 0.4 mm color galvanized steel plate |
| Outer tank size | Φ460mm ("D" type) |
| Insulation material | 50mm flame retardant polyurethane foam |
| Heat exchanger Material | 316l stainless steel, 0.3mm thickness |
| Cold/hot water port connection | DN20/DN25 |
| Product Weight | 130kg |
| Requirements for roof loads | 100 kg/m² |
| Aperture area | 4.0 m² |
| Water tank capacity | 215L |
| Weight full | 345kg |
| Product Size | Length B (mm) 2630 |
| Width A (mm) 2370 |
| collector inclination | 5°~30° |
| Min. outdoor temperature | 0ºC and -20 ºC |
| Electric heating (option) | 1 pc, 220V50Hz/110v60hz, 1500W |
