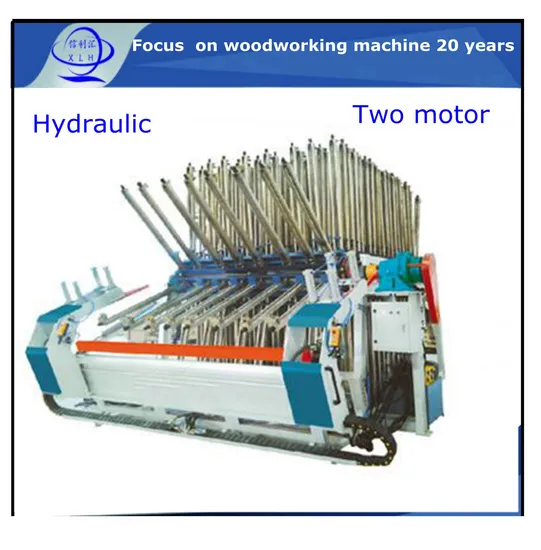

Two Motors Furniture Manufacturing Wood Board Jointing Machine Jointer/ Composer/ Clamp /Fixture Carrier with Hydraulic Press

Product Description

1 Introduction:
MY series pneumatic or Hydraulic board jointer can splice small boards which have been processed and treated in advance into big board, and it improves the wood utilization rate.
1. This machine adopts hydraulic principals characterized by a stable motion speed, huge pressure and still pressing. High density braced sheetings as back worktop and pressure from the above and front can prevent the curved angle and make the board completely. Low sanding and high output.
2. According to different working specifications(length or thickness), system pressure can be adjusted according to different pressure required. And there is pressure-supplement system, which ensure the continuous pressure.
3. Beside this machine, we also can offer composer for 14 pieces board, 30 pieces and 40 pieces, and with different specifications.
If you want to know detail, please contact with us further by email or wechat or whatapp, The equipment of various specifications can be customized according to the actual length, width and thickness of your special need.

2 Main specification of different model
item	product name	model list	row number of jointing	board specificataion
1	pneumatic or Hydraulic board jointer	MY-2500-6A	6	2500*1000
2	pneumatic or Hydraulic board jointer	MY-2500-6B	6	2500*1250
3	pneumatic or Hydraulic board jointer	MY-4500-6A	6	4500*1000
4	pneumatic or Hydraulic board jointer	MY-4500-6B	6	4500*1250
5	pneumatic or Hydraulic board jointer	MY-2500-14A	14	2500*1000
6	pneumatic or Hydraulic board jointer	MY-2500-14B	14	2500*1250
7	pneumatic or Hydraulic board jointer	MY-4500-14A	14	4500*10000
8	pneumatic or Hydraulic board jointer	MY-4500-14A	14	4500*1250
9	pneumatic or Hydraulic board jointer	MY-2500-20A	20	2500*1000
10	pneumatic or Hydraulic board jointer	MY-2500-20B	20	2500*1250
11	pneumatic or Hydraulic board jointer	MY-2500-30A	30	2500*1000
12	pneumatic or Hydraulic board jointer	MY-2500-30B	30	2500*1250
13	pneumatic or Hydraulic board jointer	MY-2500-40A	40	2500*1000
14	pneumatic or Hydraulic board jointer	MY-2500-40B	40	2500*1250
15	pneumatic or Hydraulic board jointer	MY-4500-20A	20	4500*1000
16	pneumatic or Hydraulic board jointer	MY-4500-20B	20	4500*1250

3 Detail parameters

model	MYS2500X-A	MYS2500X-B	MYS4500X-A	MYS4500X-B
Max working legnth(mm)	2600	2600	4600	4600
Max working width(mm)	1000	1250	1000	1250
line of fixture	14/20/30/40	4/20/30/40	4/20/30/40	4/20/30/40
fixture number of each line	8	8	12	12
power of station(kw)	4	4	4	4

4, Deatil show
Detail machine pictures, all photoes are for 100% real shooting !
5 Main feature:
1, MYS series jigsaw machine, accurate alignment, high work efficiency, labor intensity, four-cylinder pressing device, can make the surface of the sheet smooth and improve the quality of the board.
2, The sliding pressure frame slides on the round rail of the steel plate, which makes the pressure frame slide more light and wearable.
3, When the sliding pressure frame is aligned with the fixture, a signal light indicates that the hydraulic motor can be fed, thereby shortening the alignment time and avoiding damage to the machine.
4, The hydraulic motor automatic feeding device is set to the third gear. The first gear is in the feed while the motor is transmitting the locking clamp, the second gear is the reset gear position, and the third gear is in the feed direction while the motor reverses the release clamp to make the process more compact. , work more efficiently
5, The torque of the hydraulic motor can be adjusted to achieve the required splicing pressure for different panel sizes and wood types to ensure quality.
6, According to customer requirements, we can customize various specifications of jigsaw machine equipment.
8, Company Information
Qingdao Xinlihui Machinery Co., Ltd is one of the large-scale woodworking machinery manufacturer in China. The company is located in Wangtai town.
Our company is a comprehensive enterprise which is specialized in research and development, design, manufacturing, sale and service. With advanced production equipment and professional technical staff of research and development, and management. Which is formed a unique management model and the standardization of production process.
The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill machine, Pur wrapping machine, paper sticking machine, vacuum laminating machine, edge banding machine, computer engraving machine and the other series and over sixty standards. With the scientific management, unique technology, and innovative products to meet customer demands. Our products get a very high reputation from our customers at home and abroad. Our products are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic. It creates a famous brand called "XINLIHUI" and our products sell well both at home and abroad. It is the most trusted brand to our customers.
We would like to work a new win-win development with the insight colleagues and we welcome all the new and old friends to visit our company and crest a brilliant tomorrow together.

---
