Low Price Plastic Multi Jet Dry Dial Cold Water Meter DN20

Product Description

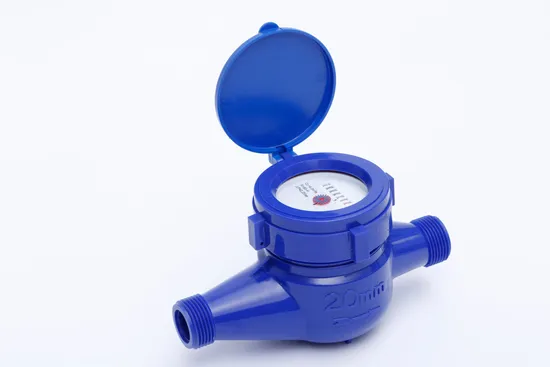

Multi-jet Dry-dial Type Cold Water Meter LXSG-20EP
Multi-jet ,Rotary vane wheel type
Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
Material: ABS plastic
Good looking
Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
Measuring accuracy conform to ISO4064 Class B standard
Installation requirements:
Meter should be installed in horizontal position with the register face upwards
Pipe line must be flushed before installation
The meter should be constantly full of water during operation
Main Technical data

Meter Size DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow		Qt Transitional Flow	Qmin Min Flow		Starting Flow		Min Reading	Max Reading
		m³/h			L/h					m³
15	B	3	1.5		120	30		14		0.0001	99999
20	B	5	2.5		200	50		16		0.0001	99999

Maximum permissible error:
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%
Working Condition:
Water temperature:0ºC≤t≤50ºC (For cold water meter)
Water pressure: ≤10bar (16bar on request)
Competitive Advantage:
Low price
Stable quality
Long time guarantee
100% tested
On time delivery

---
