Unparalleled Productivity Automated Hot Sale High-Efficiency High-Speed CNC Milling, Drilling, and Turning Machine

Product Description

Unparalleled Productivity Automated Hot Sale High-Efficiency High-Speed CNC Milling, Drilling, and Turning Machine
Product Description

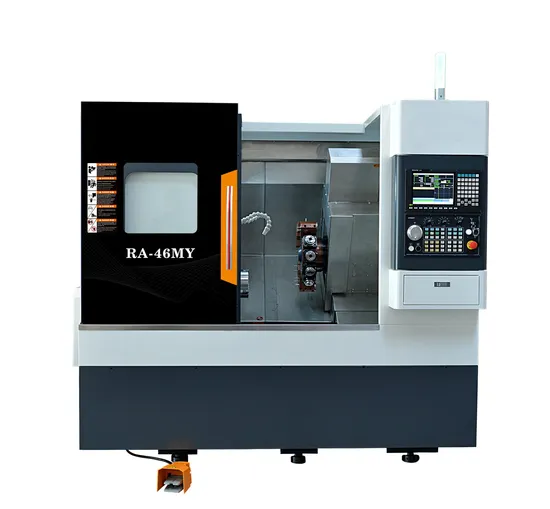

Processing Capability			Unit	RA-46MY
Processing Capability	Maximum bed swivel diameter		mm	Φ560
	Maximum machining diameter		mm	Φ520
	Maximum machining diameter on the tool holder		mm	Φ128
	Maximum processing length		mm	Φ320
	Maximum bar through-hole diameter		mm	46
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-5
	Spindle through-hole diameter		mm	Φ56
	Maximum spindle speed		rpm	4500
	Hydraulic cylinders/chucks		Inch	6''
Axis feed	Axis travel	X-Axis	mm	270
		Z-Axis	mm	400
		Y-Axis	mm	±35
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
		Y-Axis	mm	10
	Rail Type		/	Linear track 35 (ball)
Turret	Number of tool positions		pcs	BMT40-12T with Y-axis
	OD tool holder specifications		mm	20×20
	I.D. Tool Holder Specifications		mm	Φ25

• High-precision machining: Our machine tool is engineered to meet the most stringent machining precision requirements. It excels in performing exceptionally fine cutting tasks, including maintaining impeccable internal and external precision, perfect roundness, and unwavering coaxiality.
• Multiple processes: This versatile machine can adeptly handle a myriad of complex and multifaceted processing procedures. It seamlessly integrates various radial and axial cutting operations, drilling, tapping, hobbing, scribing, and drawing, all in one go, ensuring unmatched efficiency and accuracy.
• Clamping and positioning the workpiece:
The primary function of our sophisticated gripper is to secure the workpiece firmly, maintaining its fixed position throughout the machining process.
By ensuring precise positioning, the gripper upholds the exact relative position between the workpiece and the cutting tool, thereby guaranteeing superior machining accuracy.
• Solve special clamping problems:
When it comes to machining holes, shafts, slots, and threads in parts that are neither cylindrical nor wheeled, specialized fixtures provide the perfect solution.
These specialized fixtures are meticulously designed to meet unique workpiece machining requirements, addressing clamping challenges that conventional fixtures cannot resolve.

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Control System
Anoher Advantages
• Experience optimal processing conditions and benefit from a superior production environment that elevates performance.
Our state-of-the-art imported horizontal machining center, vertical machining center, CNC boring machine with a rotating table, and top-tier gantry guideway grinding machine ensure unparalleled workpiece accuracy. These advanced systems significantly boost assembly precision and extend the longevity of maintained accuracy.
• State-of-the-Art Detection Methods
Positioning accuracy is rigorously tested and finely tuned using cutting-edge laser technology, strictly following the prestigious German VDI3411 inspection specification, with each parameter tested five times for utmost precision.
Every machine tool undergoes comprehensive and rigorous processing tests before leaving our factory. This stringent testing ensures that each tool not only meets but exceeds actual processing accuracy requirements, guaranteeing superior performance.
Product sample
• This state-of-the-art CNC machine center is a marvel of engineering, seamlessly integrating advanced milling, precision drilling, and efficient tapping functionalities in one innovative unit.
• Masterfully capable of CNC machining a diverse range of materials, including aluminum, steel, copper, and various non-metal profiles, offering unmatched versatility and precision.
• Exceptionally versatile, our system finds extensive applications in numerous high-demand industries such as 3C electronics, rail transportation, aerospace engineering, and the intricate production of linear module guide rails.
Packaging & Shipping
•Built with a focus on exceptional protection, our packaging ensures your products remain in pristine condition.
•Engineered for unparalleled structural stability, providing robust and reliable performance.
•Our commitment to sustainability is reflected in our environmentally friendly and fully recyclable materials.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments. A 40% initial payment is required when placing your order, with the remaining 60% balance due before shipment.
2. What are your trade terms?
A: We offer versatile trade terms including FOB, CFR, and CIF to cater to your various transportation needs.
3. When is the delivery time?
A: For our standard machines, we ensure preparation within 30 days. Special machines may require additional time based on complexity. Place your order according to the provided delivery timeline.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity (MOQ) is just one set. Plus, we provide a comprehensive one-year warranty to guarantee your satisfaction.
5. How are the machines packaged?
A: All our machines are securely packed in high-quality wooden cases to ensure safe transportation.
6. How can I choose the most suitable machines?
A: Share your specific requirements with us, and we will recommend the ideal model. Alternatively, you can select the exact model yourself based on your needs.
You can also provide us with your product drawings, and we will identify and recommend the most suitable machines for your requirements.

---
