CNC Floor Type Milling and Boring Center/ Machine

Product Description

Product Description

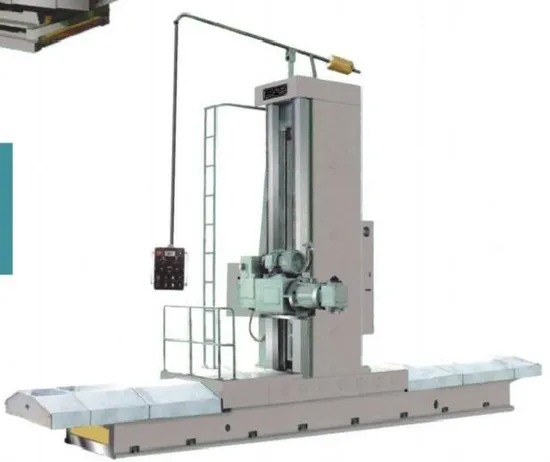

FLOOR-TYPE ROUGE FACE MILLING MACHINE XC3822 FLOOR-TYPE MILLING AND BORING MACHINE X395

M o d e l	X395	XC3822
I t e m	ISO 50#	ISO60#
Milling arbor taper
Diameter of milling arbor end mm	128.57	221.44
Installing tool plate diameter mm	160-400	315-800
Transverse travel of vertical column(x)mm(canbe extended)	4000	1500
Horizontallongitudinal travel of spindlebox(Y)mm	2500	1500
Axial travel of spindle box(z)mm	600	300(Shift Sleeve)

LARGE SIZE KEYWAY MILLING LATHE X9260 FACE MILLING MACHINE X3510

Item
Model	X3510	X9260
Working table area mm	1600x1000	X5360 3300x600
Milling arbor taper	ISO 50#	ISO 50#
Diameter of milling arborend mm	221.44	128.57
Installing tool plate diameter mm	315-630	125-315
Working table travel(X)mm	1600	3200
Horizontal travel of spindlebox(Y)mm		700
Max.weight of work-piece Kg	1500	2000

CNC SINGLE COLUMN FIXED BEAM VERTICAL LATHE CKJ577
This CNC machine belongs to economical CNCproducts.It is widely used for turning smalland medium parts in motor,pump,petrifaction andwar industries.It can performthe turningprocedures,such as cylindrical surface,innerhole,end face, groove,taper and arc surface.Thepositioning and clamping of workpiece are bothreliable and convenient.The said machine is ahigh cost-effective product with high level ofmechatronics.
Worktable can adopt four claws chuck or threeclaws hydraulic chuck and the spindle can adoptstepless speed-changing.

Model		CKJ577
Item		700
Max.cutting diameter mm
Max.height of workpiece mm		650
Max.weightofworkpiece kg		1000
Max.cutting force N		11000
Max.torque N.m		2000
Max.diameter ofworking table mm		600
Rotary speed of working table(8 steps)r/min		38-300
Horizontaltraveloftoolpost(X)mm		420
Vertical traveloftoolpost(Z)mm		600
Moving oftoolpost		5-1000
Max.dimension oftoolbar mm		30×30
Power ofmain motor kw(double speed)		11/14
Total power ofmotor kw		17
CNC system	DeltaASMTIOM
	Siemens 802C
Weight of machine kg		5000
Overall dimension(LxWxH)mm		1938x1742×2745

CNC VERTICAL LATHE CK5112

I t em	Unit	CK5112D	CK5116D	CK5120D	CK5123D	CK5126D
Max Processing Diameter	mm	1250	1600	2000	2300	2600
Max Turning Diameter	mm	1270	1620	2020	2320	2620
Table Diameter	mm	1000	1400	1800	2000	2250
MaxProcessingHeight	mm	1000	1000	1250	1350	1400
Max Processing Height Limit(OP)	mm	1250	1600	1800	1800	1650
Table Speed	r/min	6.3~200	5~160	3.2~100	3.2~100	2-63
Table Speed Steps	/	4-Speed Stepless
Table Speed Steps(OP)	/	2-Speed Stepless
Table Load	t	3.2	5	8	8	10
TableLoad(OP)	t	5	8	10	10	16
FeedingSpeedof Tool Post	mm/min	0.1~1000
Rapid speedof Tool Post	mm/min	2000
Horizontal Travel of Tool Post(X)	mm	-50-750	-50~1000	-50-1150	-50~1350	-50~1450
Cross Beam Travel	mm	Max Processing Height-350
Main MotorPower	kw	22	30	37	37	45
Main MotorTorque	KNm	10.5	17.9	35.9	35.3	68.2
Beam Lifting Speed	mm/min	660
MaxCutting Force of VerticalTool Holder	kn	20	25
Machine Dimension(LxX)	mm	2930×2115	3200x2600	3570×2985	3950x3300	4350x3665
Machine Dimension with Cover(LxW)	mm	4000x3714	4700x3805	5200×43255	5700×4220	6500x4745
Min Height	mm	2900	3100	3500	3500	3900
Machine weight	t	8	12.6	17	18	24
Accuracy Level	/	IT7
Positioning Accuracy	mm	0.03/1000
Repeatability Accuracy	mm	0.015/1000
Reverse Deviation	mm	0.01/1000

DOUBLE COLUMN VERTICAL LATHE C5820 CQ5825

Item
M o d e l	C5820	CQ5825
Max.diameter to beturned mm	φ2000	φ2500
Max.machining height(can be extended)mm	1400	1400
Working table diameter mm	2000	2000
Max.weight of work-piece kg	6300	6300
M o d e l I t e m	CMIK5820
Max.diameter to be turned mm	φ2000
Max.machining height(can be extended)mm	1250
Working table diameter mm	φ1800
Max.weight of work-piece kg	6300
Grinding specifications
Max. travel of wheel head mm	740
Grindingdiameter mm	φ240-1000
Grinding depth(Max.560 for special order)mm	420

CNC SINGLE COLUMN VERTICAL LATHE MODEL CK577

M o d e l	CK5110	CK518	CK577
Max.diameter to be turned mm	Φ1000	Φ940	φ7 0 0
Max.machining height(can be extended)mm	750	750	650
Working table diameter mm	φ900	φ800	φ600
Max.weight of work-piece kg	1200	1200	1000

DOUBLE COLUMN VERTICAL LATHE MODEL CQ5240 ,C5225

M o d e l	C5225	CQ5240
Max.diameter to be turned mm	φ2500	φ4000
Max.machining height(can be extended)mm	1600	1600
Working table diameter mm	φ2250	φ3150/φ3500
Max.weight of work-piece kg	10000	10000

DOUBLE COLUMN VERTICAL LATHE SERIES:MODEL CQ5250&C5235
This series double column vertical lathe consists of standard model C5235 and the enlarged model CQ5250 based on model C5235. It is widely used to machine large workpieces in metallurgical,chemical,motor,mine,shipping,iron &steel,m1litary industries etc.It can be used in machining thecylindrical surface,inner hole,end face,internal and externa circular surface of workpiece,especilly 30T workpiece.This machine has been improvedon thefollowing aspects:
1.Columns,guide way and the whole machine are wdened.so the rieidity of whole machine is enhanced,especill when columns are enethened for machining large size workpieces.
2.The table is driven by a frequency conversion motor shifted byhigh and low speed,so the speed can be changed steplessly.
3.Feed motion:eft and right tool posts are controlledtwo seryo motors via a drive to achieve rapid movement,feeding movement and steplessspeed changing.Electronic hand wheel is also a standard accessory for convenient operation.
4.CNC system can be an optional accessory for feeding motor to achieve two-axis synchro-motion and circular surface processing

Ltems/Models		C5235
Max.turning diameter	mm	φ3500
Max.height of work-piece	mm	2000/2500/3150
Max.weight of work-piece	T	32
Max.cutting force	N	50000
Max.torque	N.m	84000
Working table diameter	mm	3150
Speed range ofworking table	r/min	1~50
Horizontal movement of tool post	mm	1920
Vertical movement of tool post	mm	1250/1400/1600
Max.swing angle of tool post		±30°
Range of feed amount of tool post	mm/min	02.0~100C
Rapid speed of tool post	mm/min	2000
Max. travel of cross rail	mm	1750/2250/2900
Main motor power	KW	75(frequency conversion)
Machine weight	T	54
Overall dimension	mm	6625x5756x5000

DOUBLE COLUMN VERTICALLATHE SERIES:MODEL CQ5263&C5250
This machine is a universal heavy-duty double column vertical lathe. It's widely used to machine large workpieces in metallurgy,chemical industry,electrical machinery,mine,energy,shipping m1litary industries etc.It can be used in machining the end surfaceinternal and external cylindrical surface,internal and external circular surface,slotting of workpiece.
The structural characteristics ofthe machine:
1.Machine body is made by monoblock casting;it's also widerand thicker compare with traditional products.It will remain rigidwhen customers wantto heighten the column.
2.The main spindle bearing is high accuracy double roweylindrical roller bearing.The table guideway is constant flowhy drostatic guideway and equipped with constant coolant systemThose advantages make sure the high accuracy,rigidity,strength and thermal stability.
3.The main drive system is contrlled bywariable frequency speed-regulating device.The horizontal andvertical movement of both tool posts is declutch driving by feeding motor to achieve rapid movement and feeding movement. Electronic hand wheel is also a standard accessory for convenience operation.
4.CNC system can be an optional accessory for feeding motor to achieve two-axis synchro-motion and circular surface processing.

Ltems/Models		CQ5263	C5250
Max.turning diameter	mm	6300	5000
Max.height of workpiece	mm	3000/3500/4000	3000/3500/4000
Max.weight of workpiece	T	63	63
Max.torque of working table	KN.m	225	225
Max.cuttingforce of tool post	N.m	63	6.
Working table diameter	mm	5800	4500
Speed range ofworking table	r/min	0.34~25.4	0.34~25.4
Feed range of tool post	mm/min	0.15~300	0.15~300
Rapid speed of tool post	mm/min	2500	2500
Horizontal travel of tool post(X)	mm	3590	2940
Vertical travel oftool post(Z)	mm	1600/2200	1600/2200
Swing angle of tool post		0~+30°	0~+30°
Max travel of cross rail	mm	2810/3310/3810	2810/3310/3810
Powerof main motor(frequency conversion)	Kw	110	110
Machine weight(approximate)	T	180	150
Overall dimension(LXWXH)	mm	9200 14270x7175x9700 10200	9200 12120x6525x9700 10200

FAQ:
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: You can pay by T/T . You can also pay to my company business bank account.
4.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.
Why choose us ?
1. Compared with other factories, casting material which produced by our company independently is really better than the others.
2.one year guarantee for whole machine .
3.24-hours technical support by E-mail or telephone
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK

---
