US$10,000.00-20,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Rice, Wheat, Soybean
Portable Harvester Type
Side Hanging Type
Certification
QS, GMP, ISO9001:2008, CE
Application Field
Agriculture
Applications
Rice or Wheat Harvesting
Cutting Width
2800mm or 3200mm
Threshing Cylinder
540X1330mm
Gear Box
Zkb65 Made by World Factory
Work Dimension L*W*H (mm)
4900*2890*2700
Transport Package
in Container
Production Capacity
5000 PCS/Year
Product Description

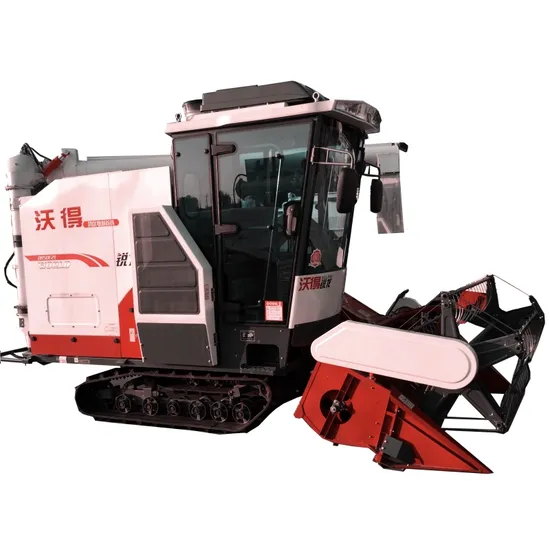

agriculture crawler type combine harvester for rice and wheat
Main Features:
1.Equipped with turbocharged engine 64.7kw with stronger power and lower fuel consumption.
2.ZKB65 hydraulic gearbox with 40C HST ensures harvester working more smoothly.
3.Rubber track 450x90x51mm brings less ground clearance.
4.The length of threshing cylinder reaches 2050mm, which makes grain less loss.
5.Reverse mechanism is the best solution to solve block of conveyor.
6.Min. Ground clearance reaches 300mm, harvester can work in deep mud fields.
Specifications:
| MODEL | UNIT | 4LZ-4.0E |
| TYPE | | FULL-FEED,TRACK COMBINE |
| ENGINE | MODEL | | 498BT/BZT/L, 4C6-88M22 |
| TYPE | | WATER-COOLED,4-CYLINDER, DI-INJECTION, VERTICAL DIESEL |
| RATED POWER | KW/HP | 64/88 |
| RATED ROTATION SPEED | RPM | 2650 |
| FUEL TANK CAPACITY | L | 130 |
| OVERALL DIMENTIONNS | MM | 5100x2890x2700 |
| WEIGHT | KG | 2800 |
| CUTTING WIDTH | MM | 2000/2200 |
| FEEDING CAPACITY | KG/S | 4 |
| GROUND CLEARANCE | MM | 300 |
| WORKING EFFICIENCY | HA/H | 0.5-0.9 |
| TYPE OF BLADE | | V TYPE/LEFT AND RIGHT |
| TYPE OF CUTTING BAR AUGER | | SCREW CONVEYING |
| THRESHING | TYPE | | AXIAL FLOW TYPE WITH BEAT BARS |
| THRESHING CYLINDER | MM | 620X2050 |
| FILTRATE TYPE | | VIBRATING SIEVES+CENTRIFUGAL FAN |
| TRACK | SIZE | MM | 400/450/500X90X51 |
| TRACK GAUGE | MM | 1150 |
| TYPE OF GEARBOX | | HYDRAULIC TYPE WITH HST |
>>
