Big Bore Cutting and Turning Machine Conventional Metal Lathe (CD6250)

Product Description

Big Bore Cutting and Turning Machine Conventional Metal Lathe (CD6250)

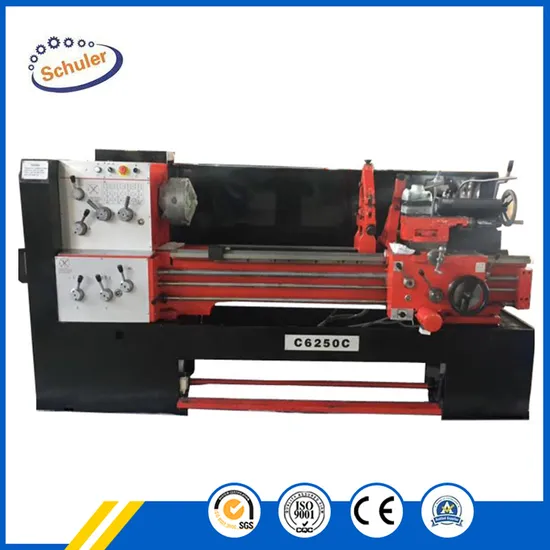

Product picture:
Product Features:
1. too flat structure, beautiful appearance
2. After hardening hard gears, precision grinding
3. Intermediate frequency quenching treatment of the rail surface
4. Dynamic balance spindle components
5. Multiple choices: metric, imperial, right handwheel, multiple voltage frequencies, guards with "CE" requirements, fast forward
6. The machine tool will undergo strict examination before leaving the factory. After the inspection personnel use the equipment to test, the quality inspection leader will review it again. After the indicators are qualified, the factory will be allowed to leave the factory.
Standard accessories:
1.3-jaw chuck
2.center¢re sleeve
3.wrenches
4.oil gun
5.operation manual
Optional accessories: 1.Steady rest
2.Follower rest
3.4-jaw chuck
4.Face plate
5.Thread chasing dial
6.Longitudinal automatic trip
7.Live center
8.Quick change toolpost
9.Taper copy ruler
10.4-position longitudinal trip
Metal Lathe Technical Parameters:

MODEL	CD6150C
Max.swing in bed	500mm(19)
Max swing over slide	325mm(13")
Work-piece cutting length	1000mm &1500mm& 2000mm&3000mm
Max.swing over gap	630mm(25")
Effective length of gap	260mm(10 1/4")
Bed width	330mm(13")
Spindle hole	Ø80mm(3 3/16")
Spindle nose	IS0-D8
Spindle taper	Metric 85mm
Spindle speeds(number)	24-1600rpm
Metric threads range (kinds)	0.5-28mm(66 kinds)
Inch threads range (kinds)	1-56inch(66kinds)
Module threads range (kinds)	0.5-3.5mm(33kinds)
Pitch threads range (kinds)	8-56D.P(kinds)
Longitudinal feeds range (kinds)	0.027-4.038mm/rev(0.0027-0.15inch/rev)(66kinds)
Cross feeds range (kinds)	0.036-2.019mm/rev(0.0013-0.075inch/rev)(66kingds)
Rapid traverse speed	5m/min(16.4 ft/min)
Screw size diameter / pitch	35mm/6m or 35mm1/4"
Cross slide travel	300mm(12")
Compound rest travel	130mm(5")
Cross-section size of tool shank	25×25
Taper of tail-stock sleeve	MT5
Diameter of tail-stock sleeve	65mm(2 1/2")
Travel of tail-stock sleeve	120mm(4 3/4")
Main motor power	5.5kw
Cooling bump motor	0.125kw
Rapid motor	0.12kw
Packing size (L×W×H)	1000mm2420×1150×1800mm (96×46×71inch)
	1500mm 2920×1150×1800mm (115×46×71 inch)
	2000mm 3460×1150×1800mm(137×46×71 inch)
	3000mm 4720×1150×1800mm(186×46×71 inch)
Net weight / gross weight(kg)	1000mm	1640/2290kg	1700/2350kg	1800/2500kg	1860/2600kg
	1500mm	1850/2550kg	1910/2610kg	2010/2760kg	2070/2860kg
	2000mm	2090/2860kg	2150/2920kg	2250/3070kg	2310/3170kg
	3000mm	2500*3300kg	2560/3360kg	2660/3500kg	2720/3600kg

Metal Lathe Details:
Metal Lathe Package delivery:
