High Efficiency Power Tools Te160II Electric Injection Machine

Product Description

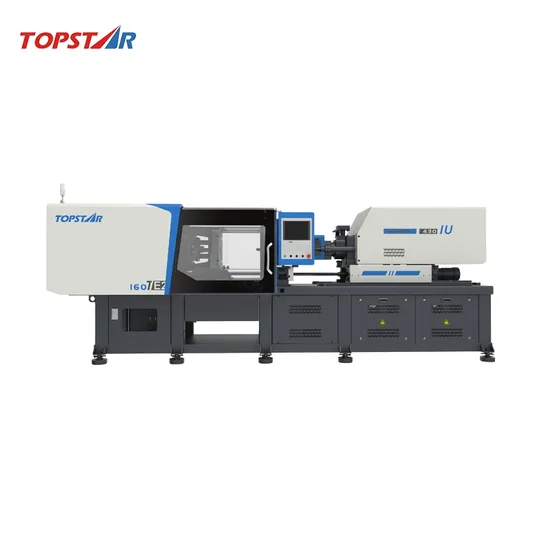

High efficiency power tools TE160II electric injection machine

Product Description:
The TEII series injection molding machine can mold dense plastic products with complex appearances, precise dimensions, or metal inserts in one go. It's widely used in Medical, Home appliances, containers, 3C electronics, cosmetics, auto parts, FMCG industries, etc.
Product Features:
1. Unparalleled Precision:
Our All-Electric Injection Molding Machine is equipped with advanced servo motors and high-precision screws, ensuring unparalleled precision in every injection. This level of accuracy eliminates the need for secondary processes, saving you time and resources.
2. Energy Efficiency:
Unlike traditional hydraulic machines, our All-Electric Injection Molding Machine operates without the need for hydraulic oil, resulting in significant energy savings. With reduced power consumption and an eco-friendly design, you can reduce your carbon footprint while enjoying a cost-effective production process.
3. Faster Cycle Times:
Thanks to the high-speed servo motors and rapid response control system, our All-Electric Injection Molding Machine delivers faster cycle times. This means you can increase your production output without compromising on quality, allowing you to meet demanding deadlines and customer expectations.
4. Quiet Operation:
Say goodbye to noisy and disruptive working environments! Our All-Electric Injection Molding Machine operates with minimal noise, creating a more comfortable and productive workspace for your operators.
5. Versatility:
Our machine's modular design and flexible configuration options ensure versatility in production. Whether you need to produce small, intricate parts or large, complex components, our All-Electric Injection Molding Machine can meet your specific requirements.
6. Reliability:
With a robust structure and high-quality components, our All-Electric Injection Molding Machine guarantees long-lasting performance and reliability. Minimize downtime and maximize productivity with a machine you can trust.
7. Experience the Future of Injection Molding:
Embrace the power of our All-Electric Injection Molding Machine and witness the revolution in the industry. With its exceptional performance advantages and numerous benefits, it's time to take your manufacturing capabilities to new heights.
Product Parameter:

Clamping Unit	Unit	TE160II
Clamping Force	kN	1600
Mold Opening Stroke	mm	430
Mold Height	mm	180-520
Distance Between Tie Bars(W*H)	mm	520*520
Min. Mold Dimension(W*H)	mm	350*350
Ejector Force	kN	33
Ejector Stroke	mm	125
Injection Unit	Unit	AA
Screw Diameter	mm	26
Screw L/D Ratio	/	21
Injection Stroke	mm	115
Shot Volume	cm³	61
Shot Weight	g(PS)	56.1
Injection Pressure	MPa	300
Holding Pressure	MPa	240
Injection Speed(STD)	mm/s	200
Screw Speed	rpm	400
Nozzle Contact Force	kN	26
Heating Power	kW	8.43
Machine Weight	t	6.5

Note: Due to the continuous development of technology, improvement, and update of design, the above specifications are subject to change without prior notice.

---
