7Gbps/3Gbps Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ Module R16 5G NSA/SA SIMCom SIM8380G-M2 SIM8380G

Product Description

Product Description

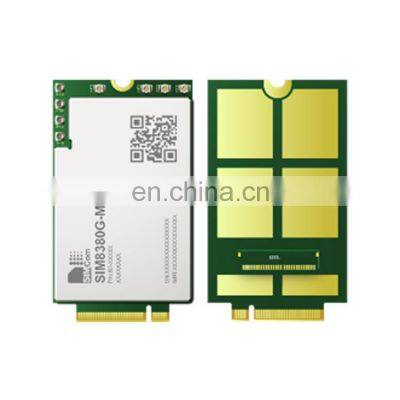

DescriptionSIM8380G-M2● The SIM8380G-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA.● It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.● The SIM8380G-M2 adopts M2 form factor. AT commands of SIM8380G-M2 are compatible with SIM8300 series modules. This also minimizes the investments of customers and enables a short time-to-market.● It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.Product Advantages● Standard M.2 interface● High throughput data communication● AT commands of the SIM8380G-M2 are compatible with SIM8300G/SIM8200X-M2 series modulesProductSIM8380G-M2Form FactorM.2Dimensions(mm)52.0*30.0*2.3Frequency Bands5G Sub-6Gn1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n38/n40/n41/n48/n66/n71/n77/n78/n795G mmWaven257/n258/n260/n261LTE-FDDB1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71/B75/B76LTE-TDDB34/B38/B39/B40/B41/B42/B43/B46/B48WCDMAB1/B2/B3/B4/B5/B8GNSS*GPS/GLONASS/Beidou/Galileo/QZSSTemperature-30℃ ~ +70℃Electrical FeaturesSupply Voltage(V)3.135 ~ 4.4Data TransfermmWave7Gbps(DL)/3Gbps(UL)Sub-6G4Gbps(DL)/1Gbps(UL)LTE2Gbps(DL)/200Mbps(UL)HSPA+42Mbps (DL)/5.76Mbps(UL)Software FeaturesProtocolTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0TLS●File System●FOTA●Android RILAndroid 6/7/8/9USB DriverMicrosoft Windows Win7/Win8/Win10/Linux/AndroidMBIMWin8/Win10NDISLinux/Win7/Win8/Win10Firmware UpgradeUSBInterfacesSIM Card1.8V/2.95VUSB●PCM●I2C●Diversity Receiver●CertificationsRegulatoryCE(RED)*/FCC*/RoHS*/REACH*Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC

---
