High Speed Support Customization Three Folding Second Hand Cheap Baby Diaper Production Line Brand New Baby Diaper Machine

Product Description

High Speed Support Customization Three Folding Second Hand Cheap Baby Diaper Production Line Baby Diaper Machine Product Description PARAMETER OF EQUIPMENT FUNCTION
Designed speed: 450m/min
Working speed: 300pcs/min(Small size)
Qualified rate: 97% (The rate is compared with qualified products with gross output
products within7.5 hours)
Efficiency: ≥85% (The rate is compared real output with principle output within
7.5 hours)
Installed capacity: 260KW (Including hot melt system)
Practical capacity: 200KW(Including hot melt system)
Electric power supply: Three-phase & four-wire 380V/50HZ(Ground wire)
Electric wire : 3x120mm2+1x50mm2+1x25mm2
Lowest barometric pressure: 8kg/cm2
Air compressor: >0.6Mpa, 1.8m3/min, 22kw(to be reference)
Gross weight: 70000kg
Noise: <85dB(A)
Machine size: (30x8x3.5)M
Working size: (34x12x4)M
Color: Silver(According to order)
Range of products: XL,L,M,S
Length of products(mm): 540(XL),500(L),450(M),390(S)
Container: 4x40HQ+1x20GP

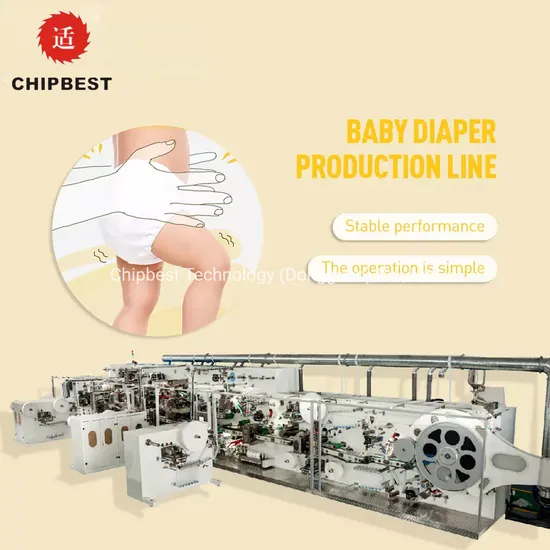

Diaper Production Machine Picture :
A: Mechanical Parts
Gear-type High-speed Fabric Crusher
Fluff Pulp Drum-type Forming Equipment
SAP Application Devices. Controlled by convertible frequency and quantity can be
adjusted
High-PressureAbsorbent Fan
Cotton Core Embossing Roller
Cotton Core Short Cutter
3-cores Pressing Roller
Transfer Flat Cutter
Elastic Tape Cutter
Frontal Tape Cutter
Leak-proof Embossing Roller
End & Side Seal Embossing Roller
Side Tape Cutter
Edge Forming Cutter
Final Forming Cutter
2-Folding or 3-Forlding
Side Wastage Collect
bottom film online laminating system
Horizontal Stacker
Safety Protection Door
B: Electronic Parts
Hot-melt Glue Equipment Control System
Servo System
Power Supply Processing System
Auto Web-guider System
Gas Resource Processing System
Electro-Optic Detecting Processing System
PID Temperature Control System
Fan Control System
Exhausting & Radiation System
Maintenance & Lighting System
Touchable Screen Operating System
Safety Protection Door Control System
Frequency Transformer Control System
Other Raw Materials : Diaper raw materials are available
1).Top sheet:
Hydrophilic / hot air through / perforated / embossing non woven fabric.
2). Back sheet: .
PE film / laminated nonwoven film
3). Tape system
PP / magic / nonwoven side tape.
PP / magic / nonwoven frontal tape.
4). Hot-melted glue
Spandex / Structure hot melt glue.
5). Core layer
ADL / Fluff pulp / SAP / sap absorbent paper / Tissue paper .
6). Leg cuff
Spandex / hydrophobic nonwoven ( SMMS/SMS) .
7).Packaging bag
Picture Of Finished Diapers :
After Sales Service A. On site installation, operation guide (with extra cost as agreed)
B. 24-hours online support

---
