Small Portable Horizontal Electric Battery Gasoline Diesel Manual Internal Combustion Rails Cutting Railway Saw Steel Rail Cutter Machine

Product Description

Product Description
Introduction of Small Portable Horizontal Electric Battery Gasoline Diesel Manual Internal Combustion Rails Cutting Railway Saw Steel Rail Cutter Machine
The internal combustion rail cutting machine is currently the lightest two-way swing rail cutting machine. The main machine of the rail saw is made of aluminum alloy, and the fixture of the rail saw is made of alloy structural steel. The rail saw has the function of preventing derailment. The cutting speed of the rail saw Fast, high utilization rate of sheet grinding wheel of rail sawing machine, high precision of cutting section of rail sawing machine, easy operation of rail sawing machine, easy movement of rail sawing machine, rail sawing machine is an ideal machine for cutting various types of rails.zmwm21
Product Parameters Main Parameter of Small Portable Horizontal Electric Battery Gasoline Diesel Manual Internal Combustion Rails Cutting Railway Saw Steel Rail Cutter Machine
K1260 Handheld Internal Combustion Gasoline Engine Rail Cutting Machine Rail Saw

1. The gasoline engine forms	single cylinder air cooling two stroke
2. The gasoline engine power	5.8 kw
3. The grinding wheel piece form	double strengthen silk screen
4. The maximum linear speed	100 m/s
5. Rated speed	5100 + 100 r/min
6. Grinding wheel piece size	Φ355mmX25.4mm,
7. Cutting precision
a.Incision and rail longitudinal vertical deviation	≤0.40 mm
b.Two-way cutting interface plane deviation	≤0.35 mm
8. Cutting time	≤120 s
9.clamp weight	5Kg
10. weight	20.5 kg
11. The fuel tank capacity	1.25 L

QG3 Electric Rail Cutting Machine

Product Name	Electric Rail Cutting Machine
Model	QG3
Motor Power(KW)	3
Speed	3200R /min
Cutting time	60kg/m rail, ≤120s
Cutting Abrasive wheel	Φ400*Φ32*4
Use times of flake grinding wheel	50kg/m use ≥4 times 60kg/m use ≥3 times
Weight(kg)	cast aluminum shell motor ≤ 54kg (cast iron shell motor ≤ 64kg)

QG-3II Rail Economical Railway Saw Cutting

Model	QG-3II
Rated Power	3-4.8kw
Voltage	Customized
Weight	39.5-65kg
Type	electric
Color	Orange/Yellow
Usage	Railway Cutting Machine
Material	Stainless Steel
Speed	3600r/min,2880 r/min
Cutting Time	60-120s
Sheet Wheel Usage	50Kg/m≥4,60Kg≥3
Verticality tolerance	≤ 0.5mm

QG-4II Rail Economical Railway Cutting Saw

Product	Description
Model	QG-4II
motor power	4.0kW
Material	Stainless Steel
Color	Orange+Yellow
Application	rail overhaul,medium maintenance and urgent repair operations

Detailed Parameters
Gasoline Engine Power	4kW
Speed of Revolution	2880r/min
Grinding Wheel Specification	Φ 400×Φ 32×4
Weight	65kg
Spindle Speed	3060r/min
Cutting Time	60kg/m rail,≤120S

Electric Cutting Machine Rail Saws Rail Cutting Machine

Name	railway electric cutting machine
Rails Applicable	43kg/m-75kg/m
Internal Combustion Engine	Model	Honda Gasoline Engine GX200
	Rate of Power	4.8kw
	Rotate Speed	3600r/min
Sheet Wheel(Main Shaft)	Rotate Speed	3030r/min
	Specification	Φ400×Φ32×4
Cutting Time	60kg/m	≤120S
Use Frequency of Sheet Wheel	50kg/m	≥4
	60kg/m	≥3
Weight	39.5KG

QG-4 Electric Railway Cutting Saw

Detailed Parameters
Model	QG-4
Gasoline Engine Power	4kW
Speed of Revolution	2880r/min
Grinding Wheel Specification	Φ 400×Φ 32×4
Weight	65kg
Spindle Speed	3060r/min
Cutting Time	60kg/m rail,≤120S

DQG-3 Type Electric Railway Rail Cutting Machine

Voltage(V)	380
Power(KW)	3
Cutting range(φ mm)	43-75KG Rails
Cutting perpendicularity	≤0.5mm
Cutting Abrasive wheel	∮400×∮32×4
SZIE(mm)	550x500x650
Weight(kg)	54
Speed	3200R /min

DQG-IV Electric Two-way Swing Rail Cutting Machine

Electric motor	3kW/4kW
Voltage	380V
Speed	2880r/min
Grinding wheel	PB400*32*3.5, linear speed 70m/s
Cutting time	90-100 seconds for 60kg/m rail
Section quality	the verticality is not large ±0.5mm, the surface is smooth and clean, without burns

Detailed Photos

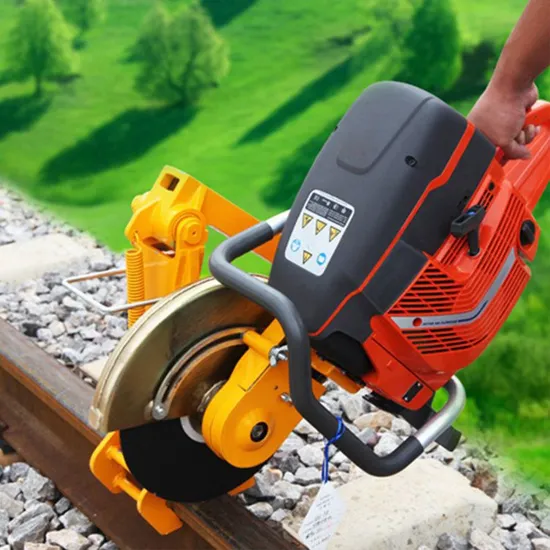

Figure Photos of Small Portable Horizontal Electric Battery Gasoline Diesel Manual Internal Combustion Rails Cutting Railway Saw Steel Rail Cutter Machine
