US$1,500.00-3,000.00
|
1 set
(MOQ)
|
Basic Info.
Mixing Drum Shape
Conical
Range of Spindle Speed(r.p.m)
22 - 42 r.p.m
Voltage
110V220V230V380V400V415V440V500V600V50Hz60Hz
Barrel Volume (L)
200-10000
Material
SUS304, SUS304L, SUS316, SUS316L
Mixer Type
Double Ribbon Mixer
Operating type
Continuous Operating
Transport Package
Wooden Packing
Production Capacity
100 Set/Sets Per Month
Product Description

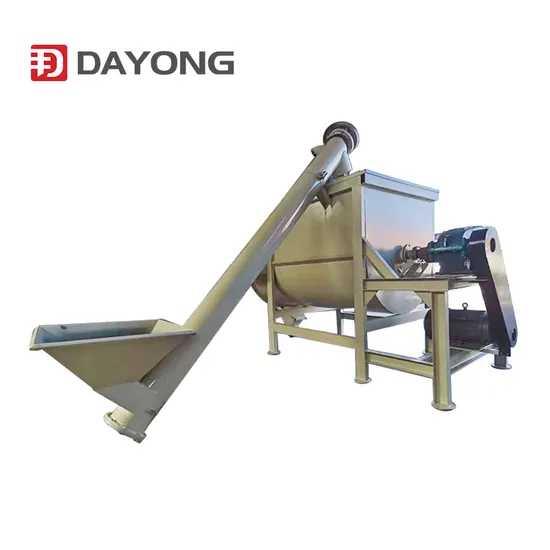

Product Description Horizontal ribbon mixer by a U-shaped shell, spiral mixer into the blades and drive components; spiral ribbon blade is double internal and external structure of the material from both sides of the outer spiral to the central collection, inner spiral of the material transport from the center to both sides , forming convective mixing . Horizontal ribbon mixer for cohesive or cohesive mixture of powder and add the liquid and pasty powder mixed materials with good results , cylinder cover can be made fully open the door , so that the equipment replace cleaning products.
Detailed Photos 1.Material
Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, different
Material can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer.
2.Motor
Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.
Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.
3.InletVarious inlets on the top cover of the barrel can be designed according to different situations. They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole. The top cover can be designed as fully-opened lid for easy cleaning.
4.Discharge port
The drive types of valve are Manual, pneumatic, and electric.
Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.
5.Mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials.
The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.
Product Parameters
Model | A mixed(kg) | Power(kw) | Spindle speed(r/min) | Weight(kg) |
200 | 80-100 | 3 | 42 | 450 |
500 | 200-250 | 5.5 | 42 | 800 |
1000 | 400-500 | 7.5 | 42 | 1200 |
1500 | 600-700 | 11 | 32 | 1500 |
2000 | 800-1000 | 15 | 32 | 1800 |
3000 | 1200-1500 | 18.5 | 32 | 2000 |
4000 | 1600-2000 | 22 | 30 | 2500 |
6000 | 2400-3000 | 37 | 28 | 3000 |
8000 | 3200-4000 | 45 | 28 | 4000 |
10000 | 4000-5000 | 55 | 22 | 5000 |
WHY CHOOSE US?
1.It is made up of stainless steel
2.The mix blade is ribbon blade
3.This ribbon mixer can add the heating or cooling jacket, match the complete spray system( if consumer need, we can match for your)
4.Can match the frequency changer( to adjust the ribbon blade rotation speed)
5.Meeting ISO9001,CE and SGS certificate
6.Guarantee:1 year
7.Provide integrated production line services Company Profile Xinxiang Dayong Machinery Manufacturing Co., Ltd. was established in 1987 and has more than 30 years of OEM production experience. The main products are SCREENING,CONVEYING,POLISHING,GRINDING&MIXING EQUIPMENT.
Our products have been exported to Europe, North America, South America, Asia, Oceania, Africa. We have local agents in Brazil and the Philippines. We have won a high reputation among new and old customers. All our products are reasonably designed and made of high-quality materials, which are ideal choices for customers. Adhering to "Science and technology as the guide, quality as the center, to meet customer needs", Dongzhen will continue to improve to provide better products and services.
>>
