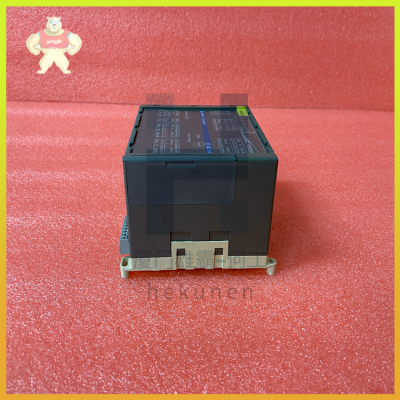

The basic unit 07 KT 97 works either as
· bus master in the decentralized automation system
Advant Controller 31 or as
· slave (remote processor) in the decentralized automation system Advant Controller 31 or as
· stand-alone basic unit.
The basic unit is powered by 24 V DC.
2.1.1.1 Main features
· 24 digital inputs with LED displays
· 16 digital transistor outputs with LED displays
· 8 digital inputs/outputs with LED displays
· 8 individually configurable analog inputs 0...10 V,
0...5 V, ±10 V, ±5 V, 0...20 mA, 4...20 mA, differential
inputs, Pt100 (2-wire or 3-wire), the analog inputs are
also individually configurable as digital inputs
· 4 individually configurable analog outputs ±10 V,
0...20 mA, 4...20 mA
· 2 counters for counting frequencies up to 50 kHz, configurable in 7 different operating modes
· 1 CS31 system bus interface for system expansion
· 1 interface for connecting communication modules
(e.g. 07 KP 90)
· 2 serial interfaces COM1, COM2
– as MODBUS interfaces and
– for programming and test functions
· Real-time clock
· LEDs for displaying operating conditions and error
messages
· Detachable screw-type terminal blocks
· Fastening by screws or by snapping the device onto a
DIN rail
· The lithium battery 07 LE 90 can be put into the
battery compartment in order to
– store and backup the user program in the RAM
– store and backup data which is additionally contained in the RAM, e.g. the status of flags
– backup the time and date (real-time clock)
· RUN/STOP switch for starting and aborting the program execution
· Extensive diagnosis functions
– self-diagnosis of the basic unit
– diagnosis of the CS31 system bus and the
connected modules
>>
