Efficient and Easy to Operate Automatic POF Film Shrink Packaging Machine

Product Description

Automatic heat shrink packaging machine Product Description
ENHANCED PRODUCT DESCRIPTION:
Revolutionary Auotmatic heat shrink packaging machine with Advanced Plastic Type Transfer System for Maximum Efficiency
Ready to embark on a lucrative venture in facial tissue or cotton towel production? Discover the essential machinery you need to succeed!

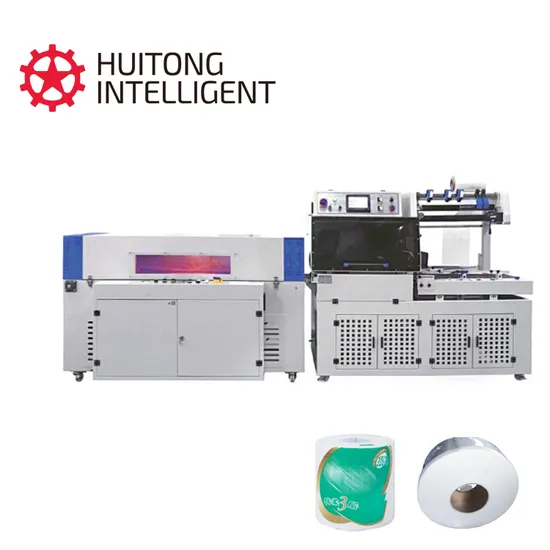

♦This fully automatic edge bundling shrinking sealing machine TP-RSS01 can be used for fully automatic online shrinkage packaging products. It uses photoelectric detection to automatically detect the products and can choose between automatic feeding or manual feeding modes. It adopts 1 folded film and sealing other 3 sides. The constant temperature heating sealing and cutting system can be used to seal and cut various industrial standard heat sealing films such as PE and POF. The sealing is firm and beautiful, especially suitable for POF sealing and cutting. When changing the product size, simple adjustments can be made through the handwheel, no need to replace any components, reducing product replacement time and making it easier to operate. The adjustable front-end feeding system and the back-end storage work desk enable the entire machine to operate at high speed, unmanned and automaticall
Explore a variety of machine types, whether full auto or semi auto. We warmly invite you to consult with us and explore innovative production solutions tailored to your market's popular products.
Sophisticated Functions
• A broad spectrum of products can be packaged• Cost-effective Automatic packing solution• Safety protection and alarm attached• The sealing system is capable of performing smooth and firm sealing line.• Easy operation and maintenance
Comprehensive Machine Information:
Key Technical Parameters:

Sealing type	L bar
Max speed capacity	60packs/min (depend on product size)
Sealing height	≤125mm
Packing width	≤350mm
Product size	Width +height ≤480mm
Film type	Center-folded polyolefin ( POF ) film
Air pressure	≤0.5Mpa
Sealing system	Permanently heated seal bar coat
Tunnel Oven size	1200L x450W ×220H mm
Conveyor	Chain with rotating silicon coated rods
Power	7.5KW
Working height	780- 850mm
Machine material	Carbon steel

Sealing knife temperature control	Adopting the "Xinpu" digital temp. controller and imported thermal sensing control, the temperature can be adjusted from 0 to 400 ° C
Sealing knife size	Horizontal sealing knife * vertical sealing knife size: 870mm * unlimited Max. packing size, length unlimited Maximum packing size: width W+ H ≤ 700mm Cutting blade opening size: standard ≤ 250mm Belt width: 700mm

Captivating Machine Picture:
Insightful Factory Information:
Exchange of foreign friends:
CERTIFICATE:

---
