Efficient Vacuum Freeze Dryer for Industrial Scale Food Drying

Product Description

Product Description

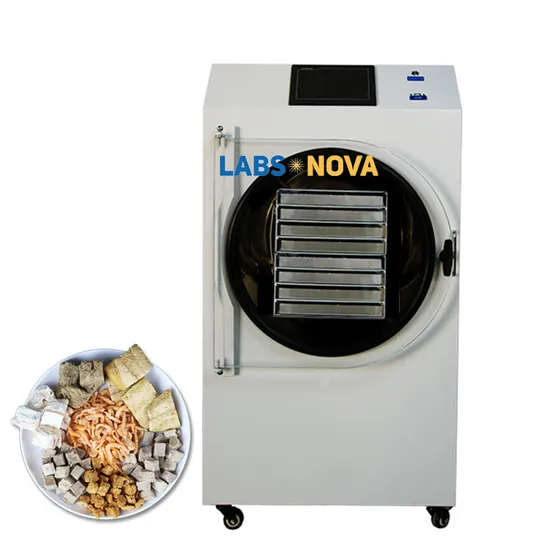

Household-type Freeze Dryer,
also known as
Home Freeze Dryer, is a compact vacuum
freeze dryer designed for household and small-scale freeze-drying needs. Perfectly suited
for fruits, meats, vegetables, Chinese herbal medicines, health products,and more.
Lyophilization, or freeze-drying, is a sophisticated process where water is extracted from a product after it is
frozen and subjected to a vacuum, causing the ice to transition directly from a solid to a vapor state, bypassing
the liquid phase. This intricate process comprises three distinct, unique, and interdependent stages:
freezing, primary drying (sublimation), and secondary drying (desorption).
Product Parameters

Product Model	WK-HF1	WK-HF4	WK-HF6	WK-HF8	WK-HF10
Freeze-dried Area	0.2	0.55	0.6		1.2
Cold Trap Coil Temperature	<-40ºC (no-load)
Ultimate Vacuum	15pa (no-load)
Power Supply	220V 50HZ or110V 60HZ
Power	1100W	1500W	1800W	2200W	2300W
Handling Capacity	1-2KG / batch	4-6KG / batch	6-8kg / batch	15-20kg / batch	15-20kg / batch
Weight	110KG	150KG	175KG	195KG	200KG
Tray NO.	Three layers	Four layers	Four layers	Eight layers	Ten layers
Dimension	400mm x 550mmx 700mm	600mmx 640mmx 900mm	640mm x 710mm x 1200mm	635mm x 723mm x 1300mm	635mm x 723mm x 1300mm

Integrated structure, small size, easy to use, no leakage

Materials in contact with the product meet food grade requirements

The cold trap is made of stainless steel, which is anti-corrosion and easy to clean

With sample pre-freezing function

The cold trap captures ice evenly; strong ice capture ability

International famous brand compressor, which are high efficiency, energy saving, long service life, low noise.

Well-known brand vacuum pump, which are high pumping speed and higher ultimate vacuum.

Intelligently record and export data

1.Stylish appearance, compact and exquisite design;
2. Crystal-clear plexiglass door for effortless observation of the lyophilization process;
3. Crafted from durable SUS304 stainless steel, ensuring safety and reliability;
4. Acrylic door with flexible hinge to maintain optimal vacuum levels;
5. Premium imported components, delivering low noise, high capacity, and superior performance;
6. User-friendly touch screen with one-button start for seamless, automated control of the freeze-drying process;
7. Real-time adjustable freeze-drying process settings with comprehensive data and curve display;
curve can be displayed.
8. Sophisticated system design, ensuring low operational current and minimal energy consumption;
9. Efficient one-button fast defrosting technology with automatic over-temperature protection;
10.Commercial-grade vacuum pump with low noise (option for oilless vacuum pump available);
Product Display
Application Field
Company Profile
Zhengzhou Labsnova Technology Co., Ltd.Founded in 2023, Zhengzhou Labsnova Technology Co., Ltd. specializes in manufacturing high-quality extraction
and distillation equipment, catering to both lab-scale and production-scale needs.Our main product line includes premium Freezer Dryers, Rotary Evaporators, Glass Reactors, Heating & Cooling
Circulators, and Water Circulating Systems.Additionally, we offer Vacuum Pumps, Vacuum Drying Ovens, and Low-Temperature Cooling Liquid Circulating Pumps.
Our products have achieved widespread recognition, being sold across Asia, Europe, and America, and havebeen adopted by numerous laboratories throughout China.Our brand has become synonymous with reliability and innovation. As a manufacturer, we offer customized
solutions tailored to your specific needs. Our commitment to quality and service has led to repeatpurchases from satisfied customers. Most of our standard products are readily available in stock and
ready to be shipped promptly.Choose Zhengzhou Labsnova Technology Co., Ltd. for unparalleled excellence in all your laboratory equipment needs.
Related product
FAQ
1. Warranty Period, Coverage, and Conditions(1) We provide a comprehensive 1-year warranty starting from the shipping date from China. During this warranty period
because of manufacturing and quality issues,we offer full replacement and maintenance services without any extra charges.(2) Any damage caused during transportation will be covered by the seller.2. How to Address Equipment Issues?Please email us detailing the problem. Including pictures or a brief video will help us diagnose the issue more accurately.
We will identify the problem and guide you on how toresolve it. If a part is broken, we will send
you a replacement part free of charge during the warranty period.3. How Are Replacement Parts Shipped?We will choose the most suitable shipping method based on the actual situation. For small
parts, we will ship via Express delivery.4. Can You Provide Customized Solutions?As a versatile manufacturer, we offer a wide range of custom solutions tailored to your specific needs.

---
