Powder Coating Machine for Thermosetting Plastic Powder/Process of Manufacturing Powder Paint/Electrostatic Powder /Manufacturing Process for Coating Powder

Product Description

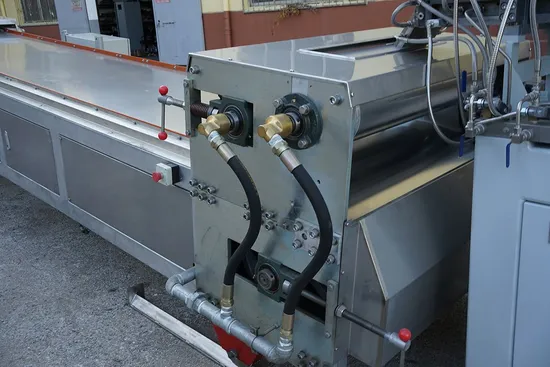

Water Cooled Cooling Belt with Flaker:
Features:
Consistent quality imported steel belt
Bottom cooling water spraying system, installed heating and cooling device
Equipped with guide device to avoid deforming
Better cooling result, higher efficient productivity
Few maintenance and easy cleaning
Chips thickness and roller speed adjustable
Crusher with finger pin and teeth type
Minimized cross contamination, simple operation
Technical Parameters:

Model	Roller Dia. (mm)	Belt Width (mm)	Belt Length (mm)	Drive Motor (kw)	Capacity (kg/h)	Cooling Mode	Overall Dimensions (mm)
GDY-406	220	600	4000	1.5	200-400	Cooled Water	4000*750*1600
GDY-508	325	800	5000	3	400-500	Cooled Water	5000*900*1800
GDY-510	325	1000	5000	3	500-700	Cooled Water	5000*1100*1900
GDY-610	440	1000	6000	4	600-800	Cooled Water	6000*1100*1900
GDY-612	440	1200	6000	4	700-900	Cooled Water	6000*1400*1900
GDY-712	600	1000	7000	5.5	900-1200	Cooled Water	7000*1400*2000

Air Cooled Type Cooling Belt with Flaker:
Features:
Stainless steel made , air cooling
Flake chips thichness and conveying speed adjustable
Reasonable design for cooling rollers inside, professional surface treatment to avoid water leaking and rust
Installed with simplified air conditioning device
Safe operation, like emergency button, clockwise and counter-clockwise rotation.
Technical Parameters:

Model	Roller Dia. (mm)	Belt Width (mm)	Belt Length (mm)	Drive Motor (kw)	Blower Motor (kw)	Capacity (kg/h)	Cooling Mode	Overall Dimensions (mm)
JFY-204	160/160	400	2000	0.55	200-400	30-100	Chilled Water&Air	2000*450*900
JFY-406	160/220	600	4000	0.75	400-500	100-220	Chilled Water&Air	4000*850*950
JFY-508	180/325	700	5000	0.75	500-700	220-400	Chilled Water&Air	5000*1050*1200
JFY-510	180/325	800	5000	1.1	600-800	400-500	Chilled Water&Air	5000*1150*1200
JFY-610	180/325	800	6000	1.1	700-900	500-700	Chilled Water&Air	6000*1150*1200
JFY-710	180/325	1000	6000	1.5	900-1200	600-900	Chilled Water&Air	7000*1250*1450
JFY-812	180/325	1000	7000	2.2	900-1200	900-1200	Chilled Water&Air	8000*1650*1600

PU Type Air Cooled Cooling Belt
Features:
Adjustable thichness and roller speed
Air cooled to avoid cross contamination
Roller and crusher equipped with overload protection
High efficiencies
One piece PU belt to faciliate easy cleaning and maintenance
Compact design for limited space
Technical Parameters:

Model	Roll Dia. (mm)	Band Width (mm)	Band Length (mm)	Motor Power (kw)	Throughput (kg/h)	Dimensions (mm)
PFY-104	156	400	1000	1.1	50	1000*870*1050
PFY-206	220	600	2000	1.1	150	2000*1150*1100
PFY-208	445	800	2000	2.2	300	2000*1100*1100
PFY-210	445	1000	2000	2.2	500	2000*1300*1100
PFY-310	622	1000	3000	2.2	800	2000*1300*1200

Company:
Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences in this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.
We passed CE certification approval and ATEX explosion resistant test, etc. international standards, we do know how to meet the diversified and customized made requests of our customers.
Our everlasting business philosophy: consistant quality, effective communication, responsible service.
Why Choosing us?
Our boss has worked in this industry for more than 13 years.
our vice GM has worked in this industry for more than 20 years.
our technical manager has worked in this industry for more than 7 years.
our production manager has worked in this industry for more than 8 years.
We have an excellent team. We are experienced, excellent, friendly and responsible, with a view to long term cooperation.

---
