ASTM B363 Gr2 Grade 2 Pure Titanium Fitting Material for Exhaust System

Product Description

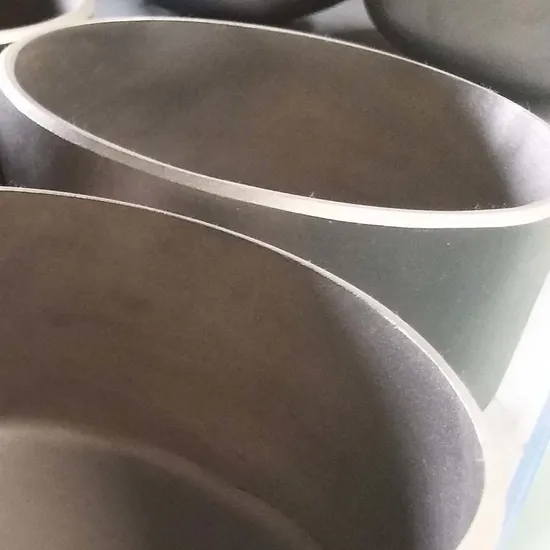

ASTM B363 Gr.2 Titaniumf Fitting from 1/2 to 48 NPS with thickness Sch5s to Sch160
AVAILABLE SIZES
thickness Sch5s to Sch160
NPS 1/2 - 48 (NPS 1/2 - 4: seamless, NPS 5 - 48: welded,1/8 -24:Forged)
STANDARD
ANSI/ASME B16.9
MSS SP-43
EN 10253
GB/T-27684
MSS SP-97
ASME B16.11
Type
Elbow, Tee, Reducer, Stub End, Cap, Return, Cross, Weldolets, Couplings, Caps, Plugs, Bushings
EXAMPLE APPLICATIONS
Chemical industry, water, oil and gas transportation, electric power, construction, Natural gas, chemical, petroleum, ship building, marine, paper making, metallurgy, electric, power, boiler, etc.

STANDARD	CHEMICAL COMPOSITION (weight %, max or range)											MECHANICAL PROPERTIES (min)
ASTM B363	UNS No	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Tensile	Yield	El.	Red.
												Mpa	Mpa	%	%
GR 1	R50250	0.03	0.08	0.015	0.2	0.18						240	138	24	30
GR 2	R50400	0.03	0.08	0.015	0.3	0.25						345	275	20	30
GR 3	R50550	0.05	0.08	0.015	0.3	0.35						450	380	18	30
GR 4	R50700	0.05	0.08	0.015	0.5	0.4						550	483	15	25
GR 5	R56400	0.05	0.08	0.015	0.4	0.2	5.5-6.75	3.5-4.5				895	828	10	25
GR 7	R52400	0.03	0.08	0.015	0.3	0.25			0.12-0.25			345	275	20	30
GR 9	R56320	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0				620	483	15	25
GR 12	R53400	0.03	0.08	0.015	0.3	0.25				0.2-0.4	0.6-0.9	483	345	18	25
GR 23	R56401	0.03	0.08	0.0125	0.25	0.13	5.5-6.5	3.5-4.5				828	759	10	15

TITANIUM MATERIALS SUPPLY SCOPE
TITANIUM GRADE	UNS NO.	WIRE	BAR	SHEET	PLATE	TUBE	PIPE	FITTING	FORGING	FASTENER
Ti Grade 1	R50250	√	√	√	√	√	√	X	√	√
Ti Grade 2	R50400	√	√	√	√	√	√	√	√	√
Ti Grade 3	R50550	√	√	√	√	X	X	X	√	√
Ti Grade 4	R50700	√	√	√	√	X	X	X	√	√
Ti Grade 5 (6Al 4V)	R56400	√	√	√	√	X	X	X	√	√
Ti Grade 7 (0.2Pd)	R52400	√	√	√	√	√	√	√	√	√
Ti Grade 9 (3Al 2.5V)	R56320	√	√	√	√	√	X	X	√	√
Ti Grade 11	R52250	√	√	√	√	√	√	X	√	√
Ti Grade 12 (0.3Mo 0.8Ni)	R53400	√	√	√	√	√	√	√	√	√
Ti Grade 17	R52252	X	√	√	√	√	√	X	√	√
Ti Grade 23 (6Al 4V Eli)	R56401	√	√	√	√	X	X	X	√	√
Notes 1) √-Available, X-Unavailable
Notes 2) For other grades like Ti6Al2Sn4Zr2Mo, Ti6Al6V2Sn, Ti8Al1Mo1V, Ti6Al2Sn4Zr6Mo, Ti15V3Cr3Sn3Al, please contact us for details.
Notes 3) It may differs a little for materials in different sizes, please also contact us.

---
