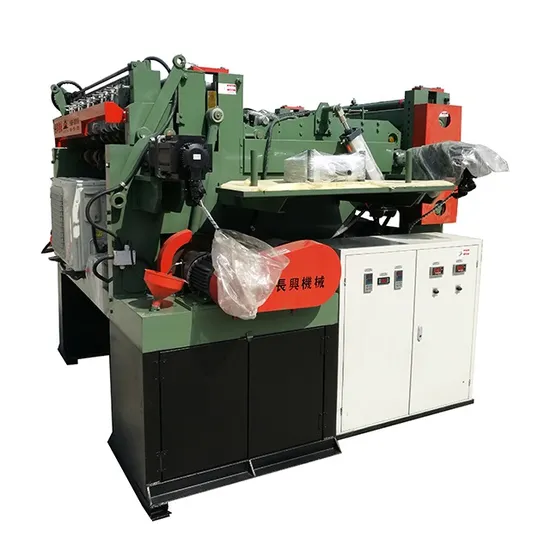

Cxct-4c1 Core Composer

Product Description

CXCT4-4C1 core Composer

Name	Model/Description /	Unit Price ()
L type lone core Composer	CLS-4B1

CLS-4()(Short core part)
	Position applied	Name of part	Type	Brand	Quantity
1	Main part	Main frame	+ Channel steel+steel plate	Changxing special	1
2	Front driving device	Reducer	PF142L1-8-P2-S2	EFSHI	1
		Servo motor	EA180-8R5-3A-3PH-3.0KW	ANCHUAN	1
3	Edge cutting driving device	Reducer	PF142L1-8-P2-S2	EFSHI	1
		Servo motor	EA180-8R5-3A-3PH-3.0KW	ANCHUAN	1
4	Back driving device	Reducer	PF142L1-8-P2-S2	EFSHI	1
		Servo motor	EA180-8R5-3A-3PH-3.0KW	ANCHUAN	1
5		Reducer	PF142L1-8-P2-S2	EFSHI	1
		Servo motor	EA180-8R5-3A-3PH-3.0KW	ANCHUAN	1
6		Reducer	PF142L1-8-P2-S2	EFSHI	1
		Servo motor	EA180-8R5-3A-3PH-3.0KW	AHCHUAN	1
7	Driving device for bridge	Gear Reduce	BWDO-9 0.75KW	Dongli	1
8	Glue Tank		6KW	CHANGXING	1
9	Air cont		1.5KW	HISENSE	1
12	Knife			CHANGXING	1
13	Elec. Control system	PLC	AP360-BT-A	TECO	1
			AP-16EMT	TECO	1
14			AP-4RD	TECO	1
		PLC	XC2-14T-E	XINJIE	1
15		()	AH-102L	WECON	1
16			DZ47-60	Schneider	8
17			CJX2-1201	Schneider	7
18			YJ2N-GS-24VDC	Schneider	20

CLS-4b Specification
Size(LXWXH)		4.35*1.555*2.4
Total power	23.25KW	()Speed	36m/min
Feeding speed	1.2-4.0mm	()Veneer size	3x6 4*8

CLS-4b()(Long core part)
	Position applied	Name of part	Type	Brand	Quantity
1	Main part	Main frame	+ Channel steel+steel plate	CHANGXING	1
2	Front driving device	Reducer	PF142L1-8-P2-S2	EFSHI	1
		Servo motor	EA180-8R5-3A-3PH-3.0KW	ANCHUAN	1
3	Dimension clipper driving device	Reducer	PF142L1-8-P2-S2	EFSHI	1
		Servo motor	EA180-8R5-3A-3PH-3.0KW	ANCHUAN	1
4	Back driving device	Reducer	PF142L1-8-P2-S2	EFSHI	1
		Servo motor	EA180-8R5-3A-3PH-3.0KW	ANCHUAN	1
5	Glue Tank	Heating rod	4.5KW	CHANGXING
6		Heating Rod	1.5KW
7	Driving device for bridge to stacking frame	Gear reducer	BWDO-9 0.75KW	Dongli	1

CLS-4b Specification
Size(LXWXH)		2.97M*1.555M*2.4M
Power	15.75KW	Output	4-6P/min
			1.5-4mm

(Stacker)
		Name of part	Type	Brand	Quantity
1		Main frame	+	Changxing special	1
2	Driving device for lifting shaft of stacking frame	Motor	YEJ-100L1-4 2.2KW	LIJIU	1
		Reducer	WPDS-100-B 2.2KW	XIAOYU	1
3	Driving device for Climbing of stacking frame	Motor	1.1KW	Dongli	1
	Device for out-feeding	Gear Reducer	BWD-1-59-1.5	Dongli	1

CLS-4b Specification
Size(LXWXH)		3.75M*1.9M*2.6M
Overall()		7m*9m
Power	4.8KW	Output	4-6P/min
		Thickness	1.5-4mm

PLEASE CONTACT ME IF YOU NEED MY HELP
JACK YANG

---
