Product Description
Testing Principle:
The product is based on the principles of bio-sensing technology glucose oxidase micro-current measurement techniques, the chemical reaction produced by micro-current and measured blood glucose by detecting the occurrence of curing blood glucose test strips glucose oxidase to determine the size and displays the blood glucose concentration.
Product features:
1.Portable blood glucose meter blood glucose meter self-test for home use.
2. Only 0.5 microliter blood sample, accurate results can be measured after 5 seconds.
3. Large screen display.
4.Store 300 test results can be viewed at any time, or delete records.
5.The test results show that the unit is mmol / L.
Blood Glucose Test Methods:
1.Test before disinfection
Before the test, please wash with warm soapy water and thoroughly dry (dry) hands, you can also use alcohol swabs to clean the fingertip, wipe and other alcohol to dry completely, and then tested.
2.Blood Sampling
1) anti-clockwise and remove the lancing pen cap.
2) a new lancet lancing seated in the socket.
3) Twist off the lancet protective cap.
4) in a clockwise direction and loaded lancing pen cap.
5) in one hand while gripping the pen cap with the other hand pull the elastic rod.
6) The lancing device affixed to the side of the finger, press the eject button.
7) gently press around the puncture site, thereby to obtain a drop of blood.
3.Join blood
1).The test strip is inserted into a blood glucose meter test strip is inserted into the mouth, the blood glucose meter "beep beep" sound, screen flicker blood markers.
2).When contact with the blood of blood to the test strip port, automatic blood sucked the blood glucose meter "beep" sound and start the test, the results after 5 seconds.
4.Testing process
1)5 seconds into the countdown, displays the test results after the end of the countdown.
2)Countdown, set the meter flat, do not shake.
3)After the display test results, pull out the test strip.
5.Test Results
1)Meter "beep beep" five seconds after inhalation of blood samples also showed the test results, test date and time.
2)Unplug blood glucose meter test strips automatically shut down and save the test results, the date and time (the reservoir can hold 300 test results).
Technical Specifications:

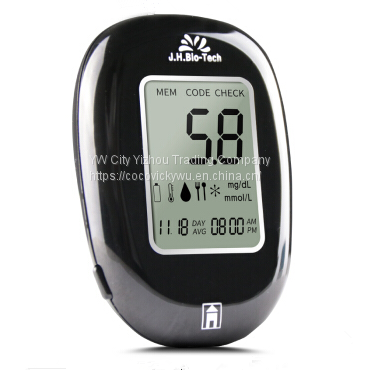

1.Product Name: Blood Glucose Meter
2.Model: JHBGM001A
3.Blood: human capillary whole blood
4.Blood volume: 0.5 microliters
5.Applicable test strip: JHBGTS001 type blood glucose test strips
6.Test range: 1.1-33.3mmol / L
7.Test time: 5 seconds
8.Power: CR 2032 3-volt button batteries
9.Battery Life: Approximately 1,000 tests (based on frequency of use vary)
10.Storage capacity: 300 test results (including time and date)
11.Ambient temperature: 10 ℃ -40 ℃
12.Operating humidity: 10% -90%
13.Storage temperature: 4 ℃ -30 ℃
14.Atmospheric pressure range: 700 ~ 1060 hPa
15.Dimensions: 15 × 54 × 86mm
16.Weight: about 45 grams (including battery)
Product Name:
| Blood Glucometer
|
Test Temperature:
| 10℃ to ~40℃
|
Battery Life:
| About 1,000 reading
|
Measurement:
| 1mmol/L-33.3mmol/L(20mg/dl-60mg/dl)
|
Measuring Time:
| 5 Seconds
|
Accuracy:
| 99.97%
|
Weight:
| 45g
|
Warranty:
| 2 Years
|
>>
