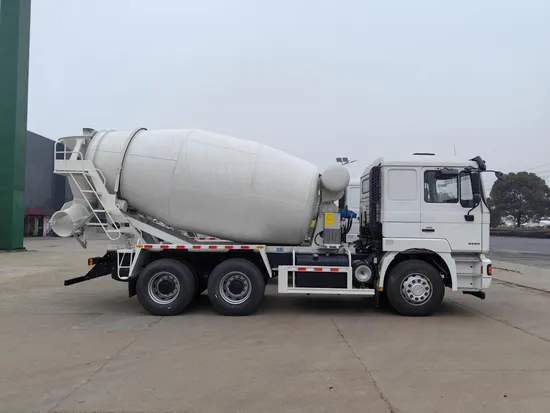

| SHACMAN F2000 6×4 MIXER TRUCK | |
| Cab | MAN F2000 Cab Single bed Air conditioner |
| Dimension(Lx W xH)(mm) | 8950×2500×3950mm |
| Total mass(kg) | 25000kg |
| Kerb mass(kg) | 14000kg |
| Rated mass(kg) | 10870kg |
| Approach / departure angel | 20/21 |
| Front/rear suspension(mm) | 1525/2405 |
| Max. gradeability (%) | 25 |
| Engine brand | Wei chai Engine |
| Engine model | WP10.340E32, 340hp |
| Rated output power | 250kw |
| Torque(N.m r. p. m) | 1250N.m/1400-1600rpm |
| Rated speed(rpm) | 2200rpm |
| Emission Standard | E-II |
| Displacement(L) | 9.726L |
| Driving type | 6×4 |
| Axle number | 3 |
| Wheel base(mm) | 3350+1350mm |
| Clutch | φ430 diaphragm spring |
| Gearbox | FAST RTD-11509C,9 Forward&1 Reverse,Manual |
| Front axle | 7.5T MAN 7500kg |
| Rear axle | 13T STR 2×13000kg |
| Ratio | 5.73 |
| Steering | ZF technology left-hand drive(LHD) |
| Type | 12R22.5,10+1pc |
| Tank capacity(L) | 380L |
| Max. speed (km/h) | 75km/h |
| Others:Domestic six channel ABS,cruise control system,speed limit of 90km/h | |
| Tank volume(m³) | 9m³ |
| Pump, Motor, Reducer | PMP |
| Material of tanker | Q345 |
