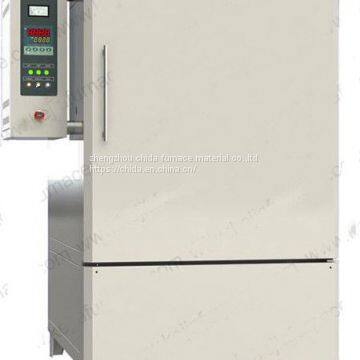

M1700 muffle furnace

Product Details

Product Description

Product Description
M1700 muffle furnace consists of high quality alumina fiber brick and MoSi2 heating elements with special design, and can be used up to 1700 C. It is an ideal tool for materials annealing and sintering in your research laboratory.
Features
1. Operation Temperature: 1600°C (1700℃ for short time).
2. Side door for easy operating.
3. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina
fiber ceramic insulation.
4. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
5. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
6. Power control with 30 or 50 segments programmable.

Product	1700℃ High temperature Muffle furnace
Chamber dimension	400x400x400mm
Max. temperature	1700C
Working temp.	≤1600C
Heating rate	0-15℃/min (Suggestion: 0-10℃/min)
Temp. control	30 steps programmable and PID automatic control
Temp. accuracy	+/-1℃,
Heating element	MoSi2 Heating Elements
Furnace structure	Double layer steel casing with dual cooling fan
Working voltage	380V three phases 50/60Hz (or according to your requirement.)

---
