Product Details
Product Description
Product Description
Basic Info.
Model NO.
GH
Material
Copper
Blades
4
Certification
ISO9001:2000, CCS, ABS, Lr, Rina, Nk, Kr, Rmrs etc
Propeller Material
Copper, Optional
Propeller Blades
4
Diameter (mm)
Optional
Certificate
ABS,CCS,BV,Lr,Gl,Nk
Diameter
500-2100mm
Transmission Way
L-Drive and Z-Drive
Transport Package
Wooden Case
Specification
50-3000KW
Trademark
XH
Origin
China
Production Capacity
30 Sets Per Month
Product Description

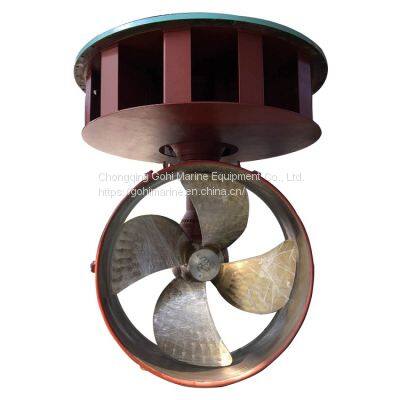

IACS Approved Marine Rudder Propeller Azimuth Thruster
L-Drive Azimuth Thruster
1.Diameter 500-3000mm.
2.FPP or CPP propeller.
3.Eletric or engine drive.
4.CCS ,BV ,ABS,NK, KR, DNV, RINA,LR, GL.
L-drive Azimuth Thruster :
Azimuth thrusters are primarily used for docking, slow speed maneuvering, emergency steering and station keeping at zero or slow forward speed. They are installed transversely in the bow or the stern of a vessel.
Electric L-drive Azimuth Thrusters
Electric azimuth thrusters with fixed pitch propeller are available from 250 to 10,750 HP (8.0MW). They are designed for variable speed electric motor input, either DC with SCR control systems or AC with variable frequency drives. Most are used in dynamic positioning applications.
Engine Driven L-drive Azimuth Thrusters
Engine azimuth thrusters for direct engine drive are available in the range of 250 to 3,000 HP. The engine must be provided with a marine gear with a reduction ratio to match the input speed. A cardan shaft connects between the output shaft of the marine gear and the input shaft.
Hydraulic L-drive Azimuth Thrusters
We offer a great line of hydraulic azimuth thrusters. They are used all over the world, many of them in dynamic positioning applications. hydraulic bow thrusters are available from 35hp to 2,000hp. Geared Bow thrusters for electric or direct engine drive are available from 250 to 3,000 HP.
Propeller diameter (mm) |
Power (KW) |
Max thrust (KN) |
Propeller type |
600 |
20~75 |
16 |
FPP |
900 |
75~210 |
33 |
FPP |
1100 |
200~330 |
46 |
FPP,CPP |
1300 |
310~470 |
66 |
FPP,CPP |
1650 |
450~760 |
108 |
FPP,CPP |
1850 |
720~1020 |
132 |
FPP,CPP |
2000 |
980~1270 |
165 |
FPP,CPP |
2250 |
1200~1550 |
235 |
FPP,CPP |
2500 |
1450~2100 |
326 |
FPP,CPP |
2750 |
2060~2480 |
378 |
FPP,CPP |
3000 |
2300~2930 |
462 |
FPP,CPP
|
>>
