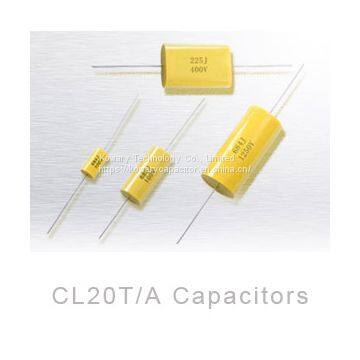

Axial Metallized Polyester Film Capacitor (CL20T/CL20A )

Product Details

Product Details

Product Description

Product Description
FeaturesMetallized polyester film, non-inductive wound construction.
Wrapped with polyester adhesive tape and epoxy resin filled.
Small size, light weight and excellent self-healing property.
ApplicationsSuitable for blocking, by-pass coupling and decoupling.
Interference suppression in low voltage applications.
SpecificationsREFERENCE STANDARD: IEC 60384-2
OPERATING TEMPERATURE: -40°C - +85°C
CAPACITANCE RANGE: 0.01uF - 10uF
CAPACITANCE TOLERANCE: ±5%(J), ±10%(K), ±20%(M)
RATED VOLTAGE: 100VDC, 250VDC, 400VDC, 630VDC, 1000V
DISSIPATION FACTOR: 1.0% max. at 1KHz, 20°C
DIELECTRIC STRENGTH: 160% of rated voltage for 5 sec.
INSULATION RESISTANCE: 30,000 MOhm min. for C≤0.33uF
10,000 MOhm*uF/C min. for C>0.33uF (20°C)
NotesCustomization for special specification and requirement is available.
Kindly contact with info at for product datasheet. Thanks!
