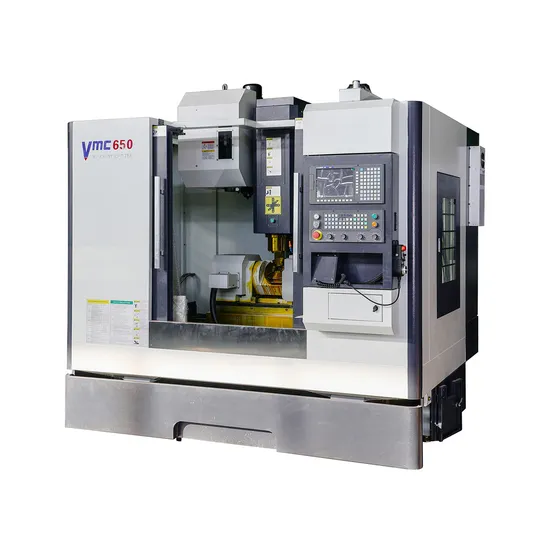

High Speed CNC Vertical Machining Center with 500mm Y Axis Precision Vmc Machine

Product Description

Product Description
VMC Series Vertical Machining Center Features:
1: Experience the pinnacle of precision and rigidity with our high-precision spindle, designed to deliver unparalleled accuracy and performance.
2: Exquisite craftsmanship is embodied in our design, featuring 2-mm thick sheet metal and three taps for optimal flushing, ensuring durability and seamless operations.
3: Harness the power of advanced technology with our servo motor drive, offering exceptional control and precision in every motion.
4: The belt-type spindle is engineered for maximum rigidity and unwavering reliability, ensuring stable and consistent machining outputs.
5: Experience high-speed, high-efficiency, and high-precision machining with our direct-connected spindle, designed for low noise and minimal vibration to enhance your productivity.
6: Our VMC series is meticulously crafted to fully satisfy the diverse needs and demands of users, providing a tailored and efficient machining solution.
VMC series CNC vertical machining center integrates x, y, and Z axis servo control in a semi-closed loop system. Its compact and thoughtfully engineered structure, combined with a servo motor-driven spindle, ensures top-tier performance and efficiency.

Specifications	VMC650	VMC850	VMC855	VMC1060	VMC1270
X axis	650mm	800mm	800mm	1000mm	1200mm
Y axis	400mm	500mm	550mm	600mm	700mm
Z axis	500mm	500mm	550mm	600mm	700mm
Spindle end face to workbench	100-600mm	150-650mm	150-650mm	100-700mm	130-830mm
Spindle center to column guide	476mm	571mm	571mm	667mm	767mm
X-axis fast moving	32(48)m/min	24(48)m/min	24(48)m/min	24m/min	24m/min
Y axis fast moving	32(48)m/min	24(48)m/min	24(48)m/min	24m/min	24m/min
Z axis fast moving	24(48)m/min	24(48)m/min	24(48)m/min	24m/min	24m/min
Cutting feed	1-10m/min	1-10m/min	1-10m/min	1-10m/min	1-10m/min
Recommended three-axis servomotor torque	10N.m	12N.m	12N.m	20 N.m	25 N.m
Workbench area	800×400mm	1000×500mm	1000×550mm	1200×600mm	1300×700mm
weight capacity	400Kg	500Kg	500Kg	600Kg	700Kg
Work surface height from the ground	900mm	900mm	900mm	1000mm	1000mm
T-slot	3×18×125mm	5×18×90mm	5×18×90mm	5×18×100mm	5×18×115mm
Rotating speed	8000 rpm	8000rpm	8000rpm	8000 rpm	8000 rpm
Spindle taper	BT40	BT40	BT40	BT40	BT40
Recommended main motor power	5.5KW	7.5KW	7.5KW	7.5KW	11KW
Positioning accuracy (JIS standard)	±0.005/300mm	0.005/300mm	0.005/300mm	±0.005/300mm	±0.005/300mm
Repeat positioning accuracy (JIS standard)	±0.003mm	±0.003mm	±0.003mm	±0.003mm	±0.003mm
Dimensions	2000× 1500×1950mm	2300×1850×1950mm	2300×1850×1950mm	2800× 2300×2500mm	3200×2400×2700mm

Detailed Photos
Proudly Taiwanese-Crafted VOLIS: Setting Precision Standards Precision Spindle Technology
Our Spindle: BT40, with a fundamental speed of 8000rpm. Optional upgrades available to 10000rpm and an impressive 12000rpm.
The servo motor drive and belt-type spindle boast unparalleled rigidity and reliability, ensuring top-tier speed and precision.
Excellence from Taiwan Innovative OKADA Tool Magazine
Efficient ATC (Auto Tools Change) System, ensuring seamless tool exchanges during operations.
With the capacity to hold 24/30/40/60 tools, this magazine enhances production efficiency by completing multiple processes in one go.
Advanced CNC Operating System
Choose from top-tier control systems: Fanuc, Siemens, Mitsubishi, Syntec, GSK, and more. Multilingual support included.
Durable Workbench Design
Crafted from wear-resistant cast iron, featuring an audio-hardened guide rail for enduring performance. Utilizes a three-axis linear slideway for rapid and efficient displacement.
State-of-the-Art Machining Center Robust Main Structure:
The main structure castings, engineered for stability, offer enduring quality assurance.
Finite element analysis and computer-simulated stress tests ensure optimal rigidity, stability, and earthquake resistance. An advanced control system guarantees high quality, exceptional performance, and full functionality for increased productivity and comfort.
A box-type ultra-wide base and column, complemented by an extended saddle, embody a heavy-duty design that supports significant loads during processing.
Spindle head features a fortified tendon and bone structure, with an optimal contact length ratio to the column for stable spindle support.
Premium-quality accessories sourced from reputable domestic and international suppliers enhance overall product quality.
Hand precision scraping and hard rail tracks accompanied by imported wear-resistant sheets ensure long-lasting sliding movement stability.
An innovative electrical cabinet design separates strong and weak electricity, replacing traditional terminal strips with a sleek, high-power circuit board for neatness, beauty, and easy scalability. Related products

Packaging & Shipping
Our team of experts meticulously assembles and thoroughly debugs every unit before it embarks on its journey to you, ensuring peak performance upon arrival.We collaborate with trusted forwarders to offer seamless shipping solutions tailored to your needs. Enjoy the flexibility of both ocean shipping and land transportation, ensuring your machine reaches you efficiently and safely.
Upon receiving your new machinery, please unbox and inspect the items immediately. Should you encounter any damages or issues, reach out to our responsive support team promptly for swift resolution.
Company Profile
Henan Rowdai Machinery Equipment Co., LTD Nestled in the bustling industrial heart of Zhengzhou city, Henan Province, Henan Rowdai Machinery Equipment Co., Ltd. is a beacon of innovation in the realm of machine manufacturing. Specializing in the design and production of an extensive range of machinery, including CNC Machine Centers, Lathe Machines, CNC Lathe Machines, Milling Machines, CNC Milling Machines, Grinding Machines, and Band Saws, our products serve pivotal roles across diverse industries such as automotive, mold-making, construction machinery, aviation, high-speed railways, and the energy sector. Our dedication to quality and excellence has carved a niche for us in numerous international markets, with our products reaching esteemed clients across Europe, America, Australia, the Middle East, Southeast Asia, and Africa.
Our team, with over a decade of expertise in machine tools, stands as a testament to our commitment to quality and precision. Our elite inspectors ensure impeccable standards, and with a customer-centric approach, we strive to meet and exceed your expectations with top-tier machines and unparalleled after-sales support. Our offerings include:
1) Stringent quality control systems
2) Remarkably competitive pricing
3) Cutting-edge technological advancements
4) Expert teams in consumer electronics and lifestyle solutions
5) Seamless and efficient communication
6) Comprehensive and effective OEM & ODM services
Our Service1. 24/7 technical support online, ensuring assistance whenever you need it.2. Access to a full suite of technical documentation services.3. Visual guidance through detailed machine operation videos.4. Hands-on, on-site training to maximize your operational efficiency.5. Comprehensive spare parts replacement and repair services.6. Rapid response to all inquiries within an impressive 8-hour window.7. Tailored product development services to bring your specific vision to life.

---
