Electric surface grinding machine MD820 Electric plane grinder

Product Description

Electric surface grinding machine MD820 Electric plane grinder Product Description

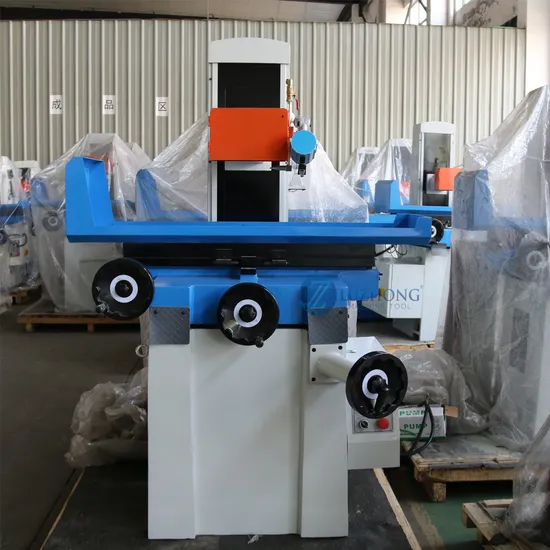

Detailed Photos
Product Parameters
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. The transverse motion of the working table can be used to realize the mechanical transmission and the manual transmission.
3. The longitudinal movement of the working table can achieve mechanical drive and manual drive.
4. Can grinding a variety of flat and complex shape, suitable for grinding without motorized feed, according to the user needs to be equipped with permanent magnetic sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product main technical parameters:

Specifications							Units	MD820
workbench	Worktable size (L * W)						mm	480×200
	Max. travel of table						mm	530×220
	Table T slot (slot number x slot width)						mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)						mm	φ200×20×Φ31.75
	Distance spindle center line to working table						mm	440
	Grinding wheel speed					50HZ	r/min	2850
						60HZ	r/min	3440
The amount of feed	Table longitudinal (left and right) speed						m/min	3-20
	Transverse (front and rear) feed handwheel feed			) Continuous (stepless)			mm/min	300
				Intermittent (stepless)			mm/min	0-5
				Handwheel per turn			mm	2.5
				Handwheel per lattice			mm	0.02
	The vertical (up and down) feed handwheel feed				Handwheel per turn		mm	1.25
					Handwheel per lattice		mm	0.01
Reversing feeder	Total input power						W	150
	X- feeder output speed						r/min	0-225
	X- feeder size						mm	280×130×120
	Y- feeder output speed						r/min	0-120
	Y- feeder size						mm	280×130×120
Motor power		Spindle motor					kw	1.1
		Cooling motor					W	40
working accuracy	The process surface of the base level of the parallel degree						mm	300:0.005
	Surface roughness						μm	Ra0.32
Machine weight			Net weight				kg	767
			Gross weight				kg	867
External size (L * w * h)							mm	1680x1140x1760
Packing size (L * w * h)							mm	1140x1250x1940

Company Profile
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
