Plastic Express Bag Polyethylenen Air Bubble Film Making Machinery

Product Description

Product Description

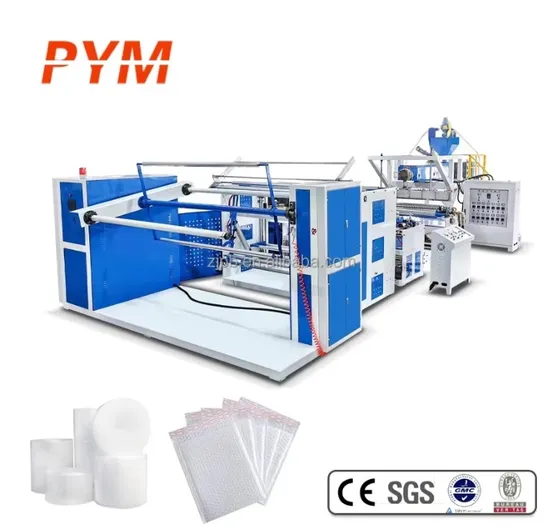

Full Automatic 3 to 5 Layers Air Bubble Film Making Machine
This machine is mainly used for the production of LLDPE film, LDPE film, PE air bubble film with single layer or multiple layers, it adopts advanced intelligent industrial controlling system, with loading system which ensures the easy and safe operation, a tighter and more even roll winding. The produced film is widely used for packaging, household wares, post parcel, bicycles, polyurethane furniture and so on.
As an important part of the machine (T-die, screen changer, screw barrel) are independently developed and produced by our factory, more than 30 years of experience, other accessories are used international well-known brands, bubble roller size can be customized according to customer conditions and needs.
Product Parameters

Model	PB-1600-3
Screw Diameter	3 sets, 75/65/65mm
Screw L/D	30:1
Film width	1600mm
Total power	85 KW
Capacity	160 Kg/hr
Film Layer structure	3 layer -5 layers
Total Weight	15000KG
Machine Dimension(mm)	16000mm*5000mm*3500mm (L * W * H)

Product illustration
Multi-layers Compound PE Air Bubble Film Making Machine
Bubble film production line Advantage:
1. Automatic film roll change,
2. Air shaft roller inflaction & release automatically,
3. No need to use adhensive tape,
4. Can use full recycled materials, stable production below 25g per square meter

Company Profile
ZHEJIANG PINBO PLASTIC MACHINERY CO., LTD. is specialized in manufacturing recycling machine, stretch film machine, air bubble film machine, including parts like screw barrel, gearbox, T-die, and screen changer. It is located in Ruian city, Zhejiang province, Its former name was ruian yumin machine screw co., ltd. since 1988. PYM is our brand.For more than 3 decades' developments, we have established our professional team of research and design, marketing and service. The factory covers the land more than 10000 square meters, obtain advanced CNC milling machines, depth drilling machines, and other professional equipment. Due to the high quality products and excellent customer services, we have gained good reputations.
FAQ
Q1:Are you trading company or manufacturer?
We are factory, not assembler. We make every part by ourselves, except motor and inverter. So we have the best control on quality of our machines and may offer the best after sale service. We have experince more than 36 years old.
machines have been sold out all over the world,more than 20 countries.

Q2:How do you guarantee machine quality?Quality is our first priority, all our workers are well trained and many of them are have more than 36years experience .
in the bubble film factory,and we strictly follow the production procedures, all machine will be having a throughout testing before the shipping.
Q3:Why choose your company as supplier?PINBO have more than 10years experiences in making high standard and high quality bubble film making machines.Stronger structure and high speed machine max speed 40merter per minutes and special machine max. Many our customer bought our first machine, then second on, then third one.... we grew up with each other and that's the best partnership.Q4:How about installation, training and after service?Rich experienced engineers available to provide oversea service at your factory
Installing, testing and training service ,Lifelong technical support ,1 year warranty. For crucial parts, like screw barrel, gearbox, T-die, we guarantee for 3 years.

---
