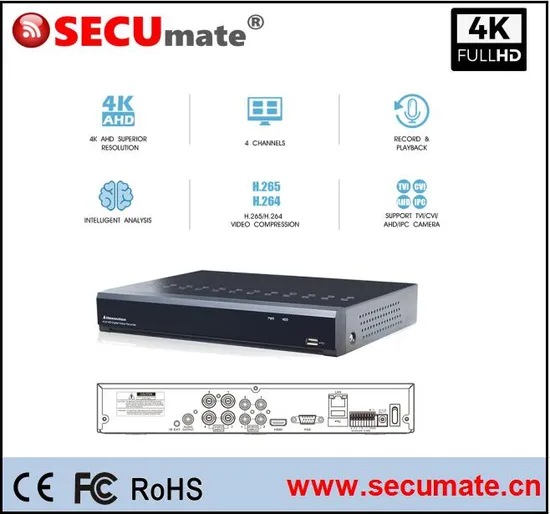

| Model | SE-9104DEL-A |
| Video Compression | H.265, H.264 |
| Video System | NTSC/PAL |
| Operation System | Linux(Embedded) |
| Analog video-input | 4ch BNC |
| IP Video Input | 2ch,(only IP up to 6ch) |
| Composite Video Input | Up to 12ch (Analog video + IP video) |
| Video Output | HDMI/VGA Output |
| Audio input /output | 4CH inputs/1CH output(RCA) |
| Display | Resolution | 8MP(4K)/5MP/4MP/3MP/1080P/720P/960H |
| Feature | 1/4/6/S.E.Q. |
| Record | Resolution | 8MP(4K)/5MP/4MP/3MP/1080P/720P/960H |
| Speed | Analog: 8MP: 6fps,5MP: 8fps, 4MP: 10fps, 3MP: 12fps, 2MP/1080P/720P/960H: 25fps,
IP: PAL: 25fps(each ch), NTSC: 30fps(each ch) |
| IP-Recording Bandwidth | 16Mbps ~48Mbps( default is 16Mbps, decrease one Analog channel can increase 8Mbps ) |
| Maximum output Brandwidth | 48Mbps |
| Maximum decode performance | 8MP: 28fps(Max 4CH playback),5MP: 80fps(Max 8CH playback), 4MP: 120fps,3MP: 136fps,1080P: 240fps |
| Recording Mode | Continuous/Manual/Motion detect |
| Synchronous Playback | 4CH |
| HDD interface | 1SATA HDD, up to 6TB |
| Multiplex Operation | live display, record, playback, backup and network |
| USB | 1xUSB3.0 1*USB2.0(for mouse and backup/upgrade) |
| Sensor & Alarm I/O | 4ch input, 1ch output |
| PTZ Control | Yes (RS485) |
| Mobile Surveillance | Support Mobile Phones based on iPhone and Android operation system |
| VGA/HDMI | 1280*1024,1920*1080, 1680*1050,2560*1440,3840*2160 |
| Power Supply | DC 12V/2A |
| Dimension(WxDxH) | 300X227X53mm |
| Working Temperature | -10°C~+55°C |
| Working Humidity | 10%~90% |
