IEC Standard Qb Cast Iron Household Peripheral Electric Motor Water Pump

Product Description

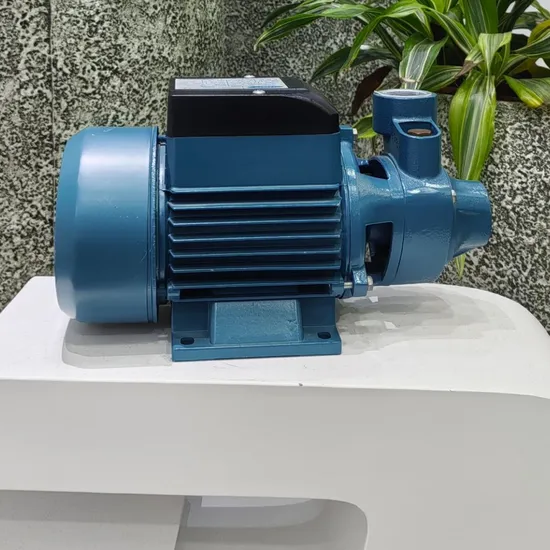

QB series electric clean water pumps
These pumps with peripheral impeller are able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves.
For the correct functioning of the pump,use to pump clean water ,or non-aggressive liquids only ,without sand or other solid impurities .
They are qualified in domestic fitting,to increase the system pressure in aqueducts and for automatic water distribution by pressure tanks and by hydrosphere units.

PUMP CONSTRUCT
PUMP Pump body: Cast Steel
Impeller: Brass/P.P.O/Stainless Steel
Mechanical seal: Carbon/Ceramic/Stainless Steel MOTOR Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Stianless Steel
Insulation: Class B/ Class F
Portecion: IP44/IP54
Cooling: External Ventilatio

TECHNICAL DATA
According to ISO9001:2008 quality management system, Elestar is provided with advanced inspection equipments and perfect product quality management system.

Model	INPUT MAX	OUTPUT POWER	CURRENT	Q.MAX	H.MAX	SUCT.MAX	DNA/DNM
QB80	1.1KW	0.75HP/0.5HP	5.2A	50L/MIN	50M	8M	1" /25MM

FACTORY PICTURES
Delivery Goods

FAQ Details 1.Q: What is your MOQ of this item?
A: 100PCS
2.Q: What is the delivery time?
A: 30-45 days after receiving orginal L/C or deposit by TT.
3.Q: Is it all right to make customer's own brand name?
A: Yes we supply OEM service. Please send us a authorization doc.
4.Q: Where is your Loading Port?
A: Fuzhou, Fujian, China Port.
5.Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
6.Q: What is your company's available production capacity?
A: 50000~60000 pieces of pump per month.

Certificate
China Import And Export Fair (Canton Fair) Info

Our Contact Way
Catherine Zhu
Fujian Elestar Motor Co.,Ltd.
Add: Fuan City,Fujian Province,China. For prefect life -Professional Pump & Pump Accessory Manufactory

---
