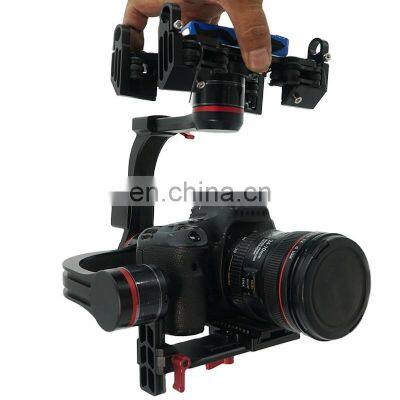

3 Axis Gimbal Stabilizer Encoder Gimbal Photography Accessories For Mirrorless Cameras VersionProduct Description
Note: Battery is not included.
Description:
3-Axis Gimbal Stabilizer adopts full CNC integrated molding, which brings light weight and stability. Even in harsh and extreme environments, it can accurately lock your camera to maintain a high degree of stability, and output exquisite industrial-grade images. It is the best choice for film and television photography and commercial advertising aerial photography.
The gimbal has a pan/tilt control system with excellent calculation capabilities. It has a built-in independent IMU to accurately control pan/tilt attitude, integrates gimbal and servo drive module, and supports three working modes: attitude locking, pointing following and first person view modes. Built-in slip ring avoids wire entanglement, and all power supply and signal wires are cleverly embedded in the pan/tilt bracket. Creative mechanical structure design makes three-axis speed controllable. The amount of joystick corresponds to the rotation speed of the shaft. The larger the amount of the stick, the faster the rotation speed of the shaft.
Features:
- Support computer operation interface setting
- Attitude lock mode (AL)
- Point to follow mode (PF)
- First person view mode (FPV)
- Built-in independent IMU module
- Gimbal dedicated servo drive module
- Support wide range voltage input
Peripheral Equipment:
- Support camera types: For Canon, Sony full range
- Support lens type (currently): For CANON EF 17-40mm f/4L USM
- Gimbal master supports input power supply: 3S~6S LiPo battery (battery is not included)
- Control requires at least 2 free receiver channels
Mechanical/Electronic Characteristics:
- Angle control accuracy: ±0.01°
- Maximum controllable speed:
* Rotation direction (PAN): ±360°/s
* Pitch direction (TILT): ±360°/s
* Rolling direction (ROLL): ±360°/s
- Controllable rotation range:
* Rotation direction (PAN): ±360° continuous rotation
* Pitch direction (TILT): -360°
* Rolling direction (ROLL): ±360°
- Working current: 80mA (@25V) 90mA 3S-6S Li (11V-26V)
- Stall current: 4A (@25V) 8A (@12V)
- Working environment temperature: -20℃ to 50℃
- Weight: 1.0Kg
- Size: 215mm x 240mm x 246mm
Package Included:
- 1 x Set of 3 Axis Gimbal
