Detachable Transport Large Volume Bed Type Milling Machine

Product Description

Detachable transport large volume bed type milling machine
Detailed Photos

√ bed type milling machine √ high rigidity machine structure for 2000kg heavy load capacity √ mill head can swivel 360°, ensures vertical & horizontal milling mode √ stepless spindle speeds in high and low 2 range, for both high-speed-fine-milling and low-speed-powerful-milling √ brief design control panel, easy to operate √ equipped with E-handwheels on control panel, ensures 3-axis easy & precise manual feeding
1.Variable spindle speeds in 2 steps 2.Ball screws on X Y and Z axes 3.Servo motors on X Y and z axes
• 2000kg heavy duty, bed-type milling machine • infinitely variable spindle speeds • 3-axis ball screws • 3-axis individual servo motors driven • equipped with E-handwheels for manual control of table movement • equipped with automatic electronic lubrication pump • equipped with coolant system & coolant water tank

Product Parameters

Specifications	Unit	X715	X716
Spindle hole taper	mm	7:24 ISO50	7:24 ISO50
Spindle speed range	r/min	Variable 6-300, 30-1500	Variable 6-300, 30-1500
Distance between spindle axis and column guideway	mm	610	8-660
Distance between spindle nose and table surface(V)	mm	0-650	0-700
Distance between spindle axis and table surface(H)	mm	8-660	8-660
Table size	mm	2100*500	2500*600
T slots	mm	4/20/100	5/20/100
Table travel-X	mm	1500	1800
Table travel-Y	mm	650	700
Table feed-X/Y	mm/min	2.5-3000	2.5-3000
Table feed-Z	mm/min	2.5-2500	2.5-2500
Table rapid feed X/Y/Z	mm/min	6000/6000/3000	6000/6000/3000
Main motor power	Kw	11	11
Torque of X/Y/Z axis AC servo motor	Nm	18/23/18	18/23/18
Cooling pump motor power	w	90	90
Overall size	mm	3220*2420*2800	4380*2520*2800
weight	kg	7300	9000

Certifications
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Machine packed with plywood case and steel pallet.

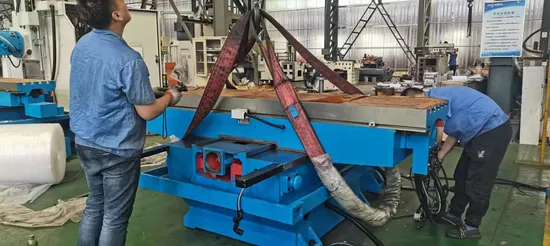

Split into two packages

Company Profile
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong(Xili) Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.We are manufacturer not trading company.All our products passed CE, ISO9001. We also do OEM for Germany KNUTH, OPTIMUM, Austria Bernardo, America JET and so on. You can trust our quality and service.Hope we can built long-term business relationship with you.

Company Hot Products Link

FAQ

1. What is the MOQ ? Minimum order quantity is 1 set. 2. What is the payment term ? Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos. Other payment terms are also acceptable after discussion. 3. What is the trade terms ? Usually is FOB. Others like CIF, CFR, EXW...... are also acceptable. 4. How long is the guarantee ? 12 month after machine's delivery from factory. Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc. 5. What kinds of machines do you supply? Company specialized in producing CNC & conventional manual milling machines. Include: CNC gantry machining center Vertical machining center Simple NC milling machine Conventional manual milling machines (Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.) 5. How can I believe your company ? XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees. Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate. Welcome your inquiry and visiting.

---
